The Life Fitness Set Top Box (STB) Connector Kit allows the Life Fitness Discover SE, Discover SE3, or Discover SE3HD consoles a means to connect a Compatible Set Top Box to the console via HDMI / IR Cable.
Audio and Video is transmitted through HDMI where STB controls are transmitted through IR. The following kits include an HDMI / IR cable, clips to attach the cable to the base, and a new console back to allow access to the HDMI port:
Life Fitness Treadmill Kit Part: T-STB-HDMI-IR-KIT
Life Fitness Cross Trainer Kit Part: X-STB-HDMI-IR-KIT
Life Fitness Upright Bike Kit Part: C-STB-HDMI-IR-KIT
Life Fitness Recumbent Bike Kit Part: R-STB-HDMI-IR-KIT
Life Fitness PowerMill Kit Part: P-STB-HDMI-IR-KIT
Life Fitness FlexStrider Kit Part: F-STB-HDMI-IR-KIT
- Life Fitness STB HDMI / IR Adapter Kit Installation Instructions, Treadmill 1004467-0001 Rev AA
- Life Fitness STB HDMI / IR Adapter Kit Installation Instructions, Non-Tread 1003320-0001 Rev AA
Replacement parts can be ordered on the Life Fitness Parts Store

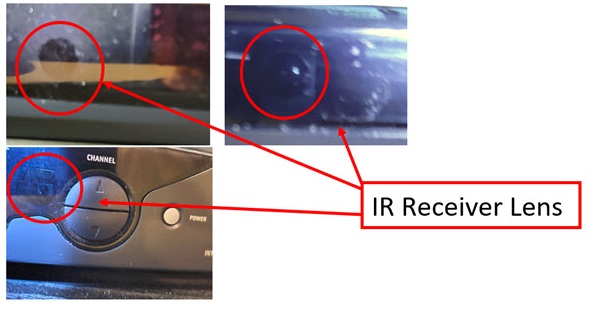

1. Locate the IR receiver on a set top box. Using a small flashlight held at an angle and within 2-3 inches of the face, move slowly across the front screen of the STB and you can see where the IR receiver is.
2. Enter System options. See the following article Life Fitness Discover SE3, SE3HD, ST, Cybex 70T System Options Access for instructions.
3. Select Media Center > TV to select the Tuner Type > STB SYNC.
Note: STB SYNC is the default selection for STB SYNC, STB Connector Kit, and Legacy PRO:IDIOM configurations.
Select the IPTV Setting at installation to match the Set Top Box (STB) brand / model in the facility’s AV closet.
These commands are sent to the corresponding STB. The STB determine the actions. See the STB manufacturer’s
documentation for detailed functionality and descriptions.

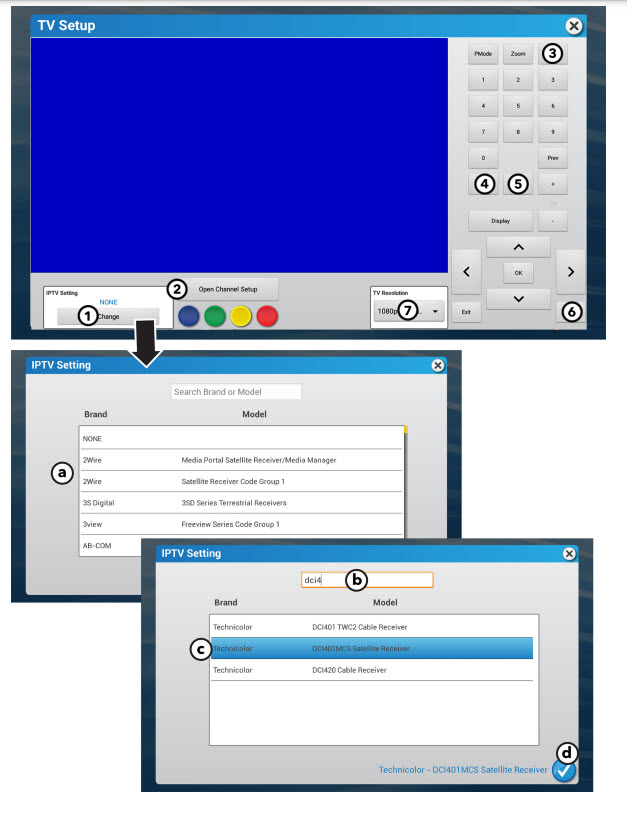

1. IPTV Setting
Select Change.
Search for the STB brand and model.
a. Scroll through the list of brands and models, or type the name of the brand or model in the Search Brand or
Model box.
b. Select the row with your desired brand and model.
c. The selected brand and model is displayed.
d. Press the checkmark to confirm.
NOTE: Select the IPTV Setting at installation to match STB brand / model in the facility’s AV closet.
NOTE: There may be multiple rows for the same brand and model. Each row will have different STB remote control codes, so multiple rows may need to be attempted during configuration.
NOTE: Rows containing the model description Legacy Product - do not use for new console installs should not be selected manually during installation of new consoles, regardless of whether the corresponding STB is new or not.
2. Generic Color buttons
STB defines the actions.
3. EPG (if available)
Lists current and upcoming programs for selected channels.
4. SAP (if available)
Toggles between normal and SAP audio channel.
5. Subtitles
Press to turn Subtitles On/Off.
6. Menu
STB menu (if available)
7. TV Resolution
Change TV resolution.
• The TV resolution default setting is selected.
• The TV resolution change only applies within the TV Setup menu and will be reset back to the default after exiting the TV Tuner Setup menu.
See the Life Fitness Discover SE3HD Console Operation Manual for more details
Testing:
- Verify Console Channel Buttons controls on the channels
- Verify a Clear picture is displayed on the Console
- Black Screen means no Video
- Blue Screen means
- HDMI disconnected in Console
- No Power to IPTV Tuner in console
- Scrolling Screen means wrong resolution selected
