Life Fitness proprietary and confidential information. For the use of the intended recipient only. The information and instructions in this bulletin are intended for the use by skilled personnel only. Indicated warranty information is for reference only and is subject to change. Latest changes to the PB will be highlighted in green text. PB's and updates to PB's will be announced through the Knowledge Base PB Announcement section. Contact your local Life Fitness technical representative for more information.
The fixing point hardware of the work arms on the Fly / Pectoral Fly (SS-FLY, OP-FLY, HS-FLY, HS-PEC) could come loose over time.
Description

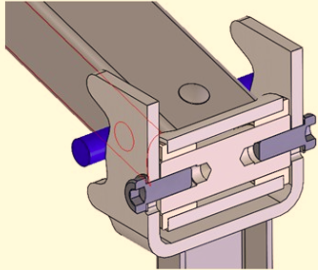

The original design had the shaft which the work arm pivots on, fixed between the U-shape at the top of the work arm, which can become tight in the bushings if irregular maintenance is performed and cause the fixing bolts to become loose. see fig.1.

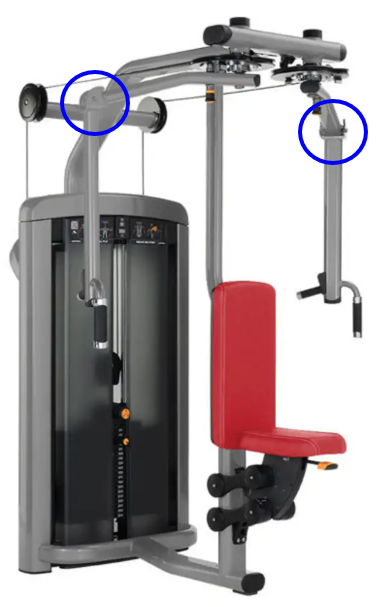

Fig.1
Resolution
A product design change to the work arms of the Fly and Pectoral Fly machines has taken place. See Visual Differences for changes, and see Affected Products for affected units.
The new work arms are backwards compatible, see Part Numbers, for more information.
Warranty
Standard warranty terms apply. Please refer to local warranty conditions.
Affected Products
The serial numbers indicated below are the first production units to include the new style work arm assemblies.
| Series | Model | Starting Serial Number |
| Insignia | SS-FLY-ASSY | USA Production: SS1FLYR25431108 |
| Hungary Production: 102544G05444 | ||
| Axiom | OP-FLY-ASSY | Hungary Production: 102605M02106 |
| Hammer Select | HS-FLY-ASSY | USA Production: HSSFLYR25351191 |
| Hungary Production: 102537J04096 | ||
| HS-PEC-ASSY | USA Production: HSSPECR25400828 | |
| Hungary Production: 102548J06333 |

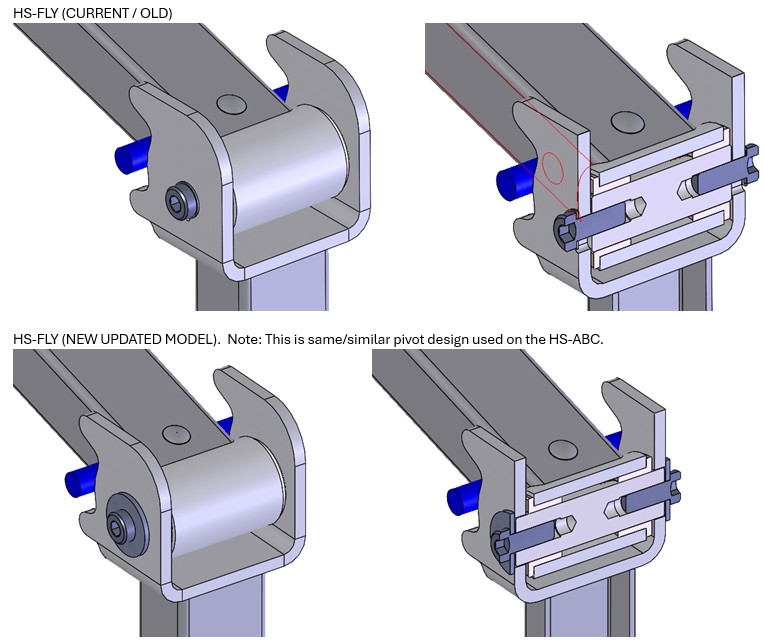

Visual Difference
Note: The below images are taken from the HS-FLY. The setup may look slightly different on other models called out in this article. Always check the actual Part Manuals for specifics.

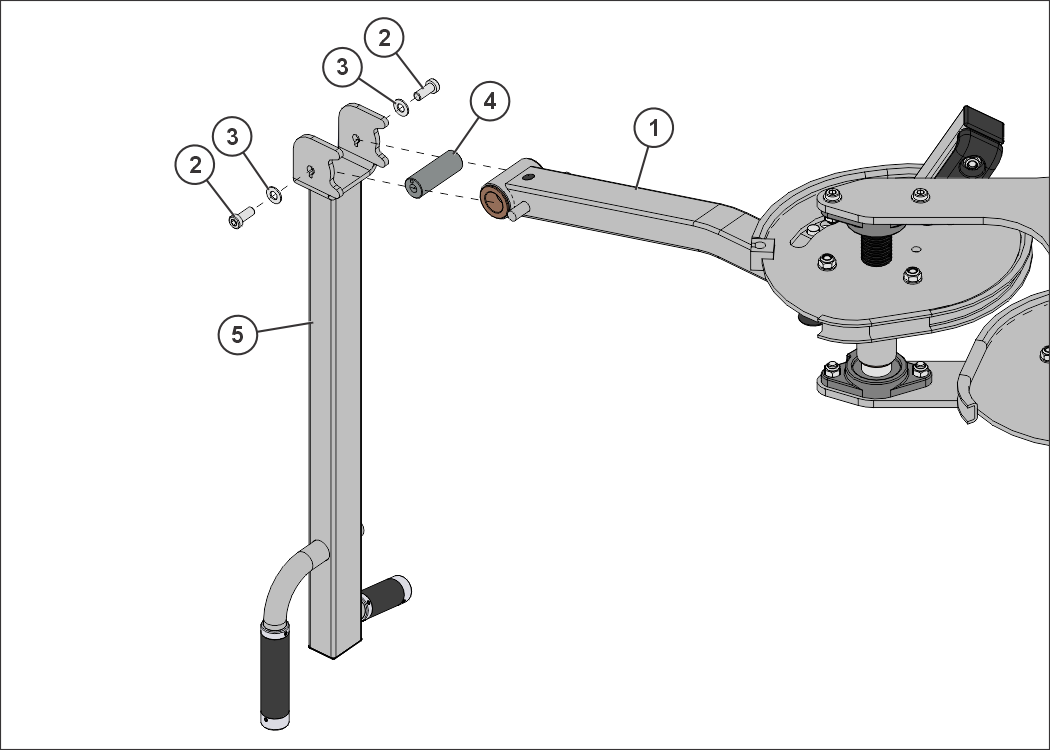

The Old assembly below shows the shaft is captured between the U-shape of the work arm and the fixing bolts are tightened against the work arm.
The New assembly shows the the shaft now going through the U-shape of the work arm and the fixing bolts tighten against the shaft.
Part Numbers

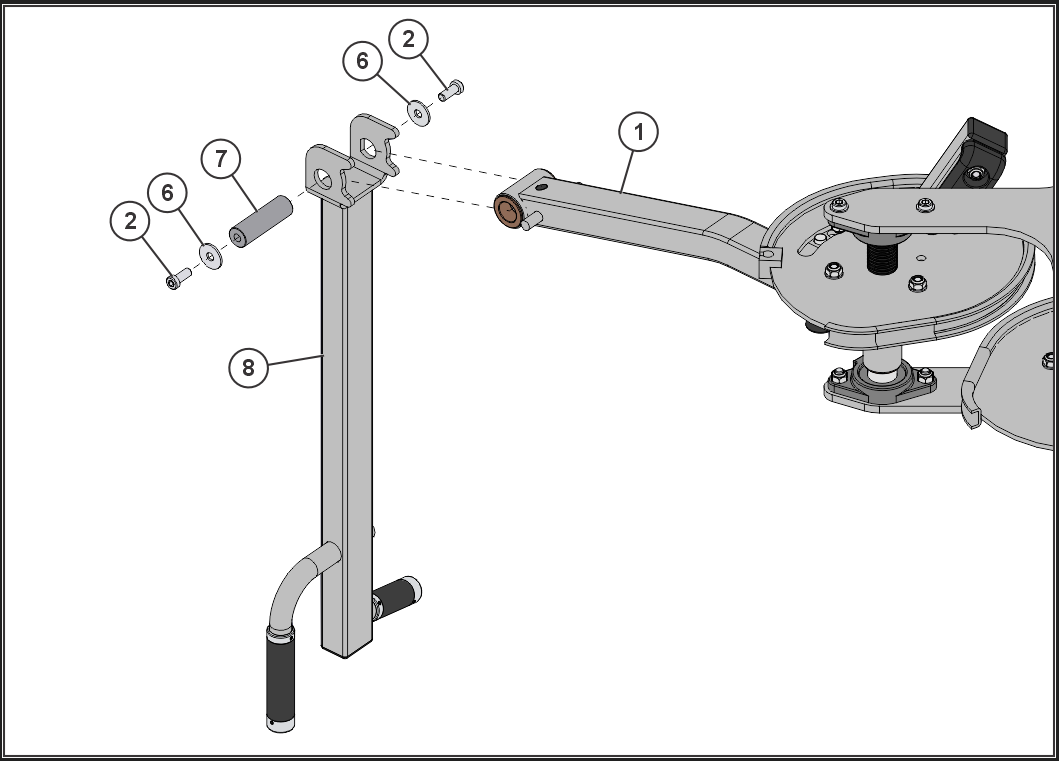

Important: The "XX" at the end of the part number depicts the frame colour. Make sure to add the correct colour code when ordering. The service kit will include the following:
Item 2: Bolts
Item 6: Washers
Item 7: Shaft
Item 8: Workarm with grips
Link to frame colour: Life_Fitness_Frame_Paint_Colors.pdf
Note: The work arms come with the ergo Grip only for the SS-FLY. All other product series mentioned in this article will come with the standard grip for the intended product line.
Important: The Following only applies to the Insignia SS-Fly

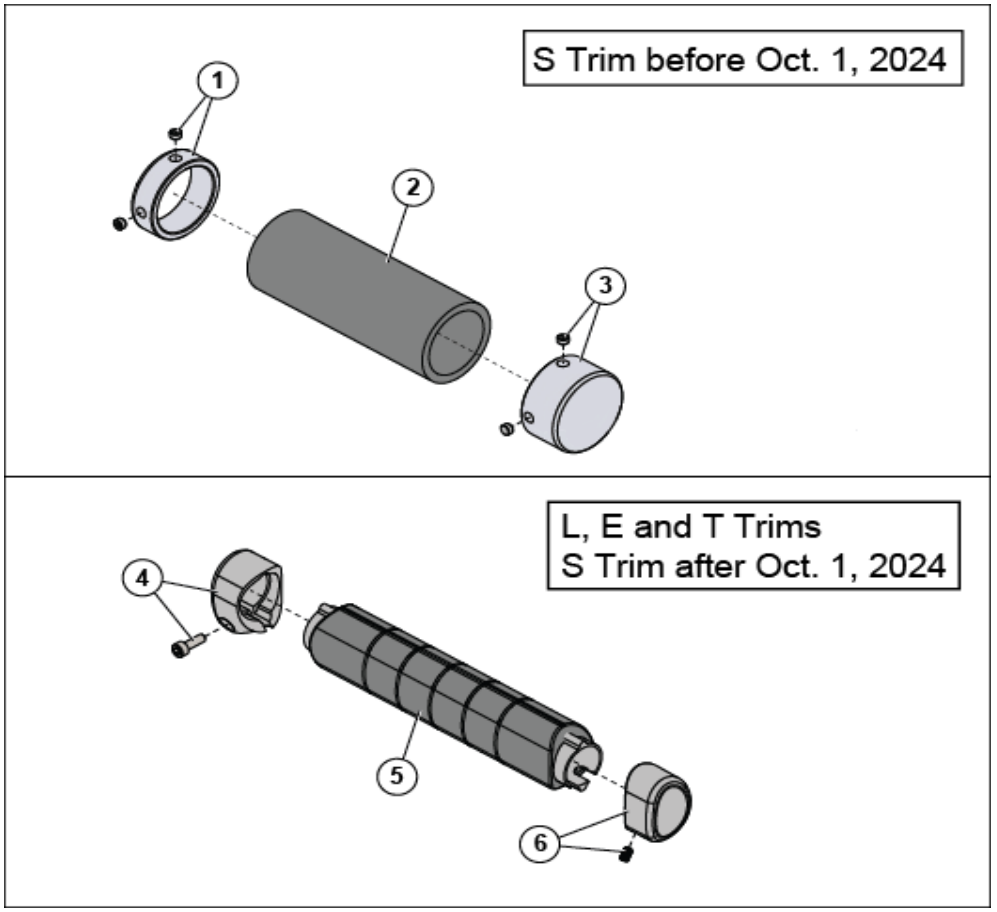

- Older version of the SS-FLY had two different grip options, this was then changed to the grip version seen in Fig.2 from Oct 01, 2024 and onwards.
- If the work arm you are exchanging or replacing has the older S Trim grip, pre Oct 01, 2024, order an additional S Trim grip, caps and set screws, so the work arms / unit has matching grips.
- Refer to the parts manual in the Parts Store for the latest part numbers.
-
Fig.2
| Series | Model | Work Arm Side | Part Number | QTY |
| Insignia | SS-FLY-ASSY | Kit: SERVICE, WORKARM, LEFT, SS-FLY | 1029280-00XX | 1 |
| Kit: SERVICE, WORKARM, RIGHT, SS-FLY | 1029279-00XX | 1 | ||
| Axiom | OP-FLY-ASSY | Kit: SERVICE, WORKARM, LEFT, OP-FLY | 1029290-00XX | 1 |
| Kit: SERVICE, WORKARM, RIGHT, OP-FLY | 1029291-00XX | 1 | ||
| Hammer Select | HS-FLY-ASSY | Kit: SERVICE, WORKARM, LEFT, HS-FLY | 1028331-00XX | 1 |
| Kit: SERVICE, WORKARM, RIGHT, HS-FLY | 1028330-00XX | 1 | ||
| HS-PEC-ASSY | Kit: SERVICE, WORKARM, LEFT, HS-PEC | 1029269-00XX | 1 | |
| Kit: SERVICE, WORKARM, RIGHT, HS-PEC | 1029268-00XX | 1 |
Ref: Pre-2957
