Only official Symbio trained and certified Life Fitness personnel or its affiliates may perform installation or service activities on Symbio products and may use the below information. Do NOT perform any activities on Symbio products without this certification. Please contact your regional or local Life Fitness Technical Training representative on how to acquire such certification. |
Tools Required
- USB 3.0 Flash drive 32G from a brand name suppliers like ScanDisk or Samsung

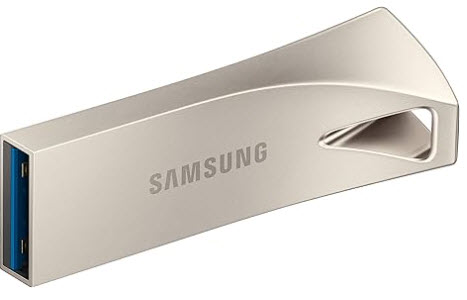

- Note: when choosing a USB flash drive, make sure to purchase from reputable vendors like Amazon's Official Samsung Store or physical stores like Staples, Best Buy, etc. Please avoid 3rd party resellers since drives may be unreliable/counterfeit that will cause issues. Sleek USB flash drives are ideal (image below) as they do not get caught in the console USB drive cover.
- 7zip or other archiving tool installed on PC
Preparation
1. Prepare a clean USB with FAT or FAT 32 file format Note: Use a USB 3.0, 32GB size from a brand name supplier like SanDisk or you will have issues putting the large interactive terrain videos on a USB.
2. Download the following software file SW v5.09.10 and older Symbio Interactive Terrain Course Files to your computer (16.4GB - it will take some time).
2.a Download the following software file SW v5.10.15 or later Symbio Interactive Terrain Course Files to your computer (15.8Gb - it will take some time).
3. Open the file using the archiving tool such as 7zip (available for free here). Once you have installed 7zip, you will be able to open and extract the .zip file
4. Once on your computer, move folder courses_EVST-00000-0005 on the root of your USB.
Steps

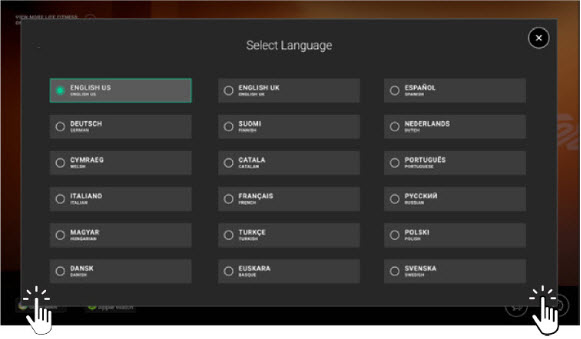

1. Select Language icon from Attract Screen to access the Select Language screen. Tap the bottom part of the Select Language screen in the following sequence: Lower-Left, Lower-Right, Lower-Left, Lower-Right. Note: Make sure you tap INSIDE the black square!

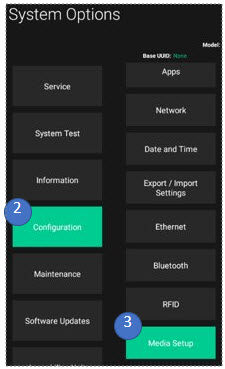

2. Once in System Options menu, touch Configuration
3. Touch Media Setup

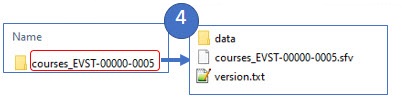

4. INSERT the USB you created. This USB should contain a single course folder at the root with three files inside:
-
-
- data directory
- .sfv file
- version.txt file
-
5. Tap course filename under Media Archives Files
6. Tap Load.
7. When the process is complete a courses were successfully loaded screen will display
-
-
- tap the check mark
- Remove the USB
- Close System Options
-
8. Once back on the Attract screen, tap Choose Workout to verify that the courses are now available
