Adjustable Carriage Label Kit
Dear Life Fitness Customer,
Please follow these instructions regarding your commercial strength unit with adjustable carriages. If you should have any questions, please contact Life Fitness service.
Description:
Please ensure that all Life Fitness adjustable carriages are adjusted properly and have the correct warning labels in place. Adjust carriages and order adjustable carriage labels as needed.
Kit part number: 1027327-0001
Kit Contents (check quantity needed on page 2):

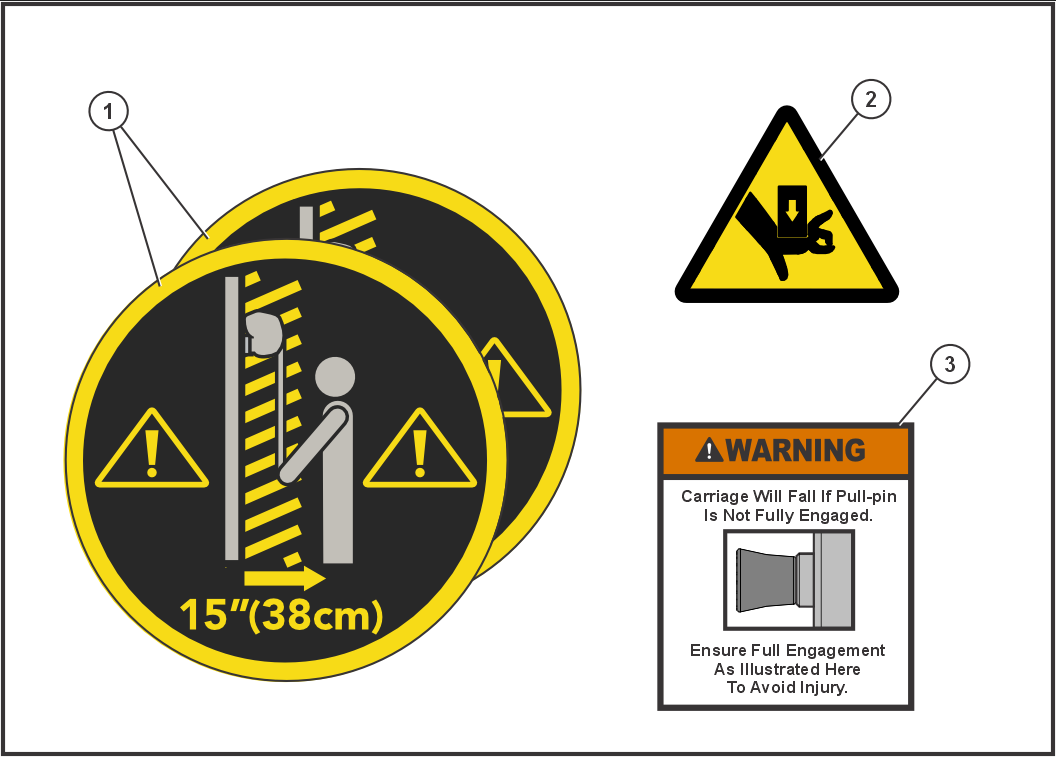

| Item | Description | Qty. |
| 1 | Adjustable Carriage Warning Label | 2 |
| 2 | Pinch Warning Label | 1 |
| 3 | Pin Engagement Warning Label | 1 |
| 4 | Alcohol Pad (not shown) | 1 |
| 5 | Carriage Label Instructions (not shown) | 1 |
Tools Required
- 7 mm Allen wrench
- 17 mm wrench
- Clean cloth
- Rubber mallet/dead blow hammer
- Rubbing alcohol
- Tape measure
- Smart phone with angle indicator app Example angle indicator apps:
- Android®: Clinometer
- Apple®: Measure

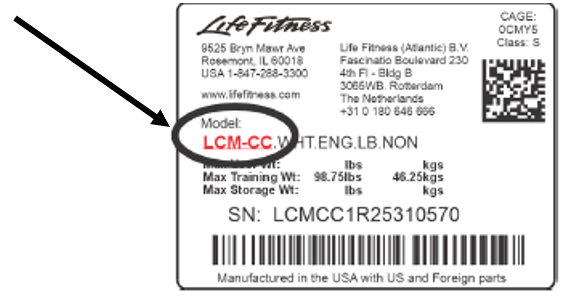

Serial Number Label
- To know if your equipment is eligible for the warning labels, locate the serial number label on the product.
- Under Model, the first part of the model number, example (LCM-CC.WHT.ENG.LB.NON) will indicate which model you have.
- Cross reference this against the list of models on page 3, column 1, of these instructions, for the number of kit(s) required per model, column 3
The underlined/bold portion designates the model.
Affected Products:
| Unit Code | Unit Name | Kit Quantity Needed |
| LIFE FITNESS PRODUCTS | ||
| CMACO | Cable Motion Adjustable Cross Over | 2 |
| CMDAP | Cable Motion Dual Adjustable Pulley | 2 |
| FXTF-CC | Syrngy 360 Cable-Cable | 2 |
| FXTF-CLU | Syrngy 360 Cable-Left | 1 |
| FXTF-CRU | Syrngy 360 Cable-Right | 1 |
| FXTS-CL | Syrngy 360 Cable-Left | 1 |
| FXTS-CR | Syrngy 360 Cable-Right | 1 |
| FXTT-CVV | Syrngy 360 Cable-Versa-Versa | 1 |
| FXTT-RCC | Syrngy 360 Rebounder-Cable-Cable | 2 |
| FXTT-RCV | Syrngy 360 Rebounder-Cable-Versa | 1 |
| FXTT-VCC | Syrngy 360 Versa-Cable-Cable | 2 |
| FXTT-VCV | Syrngy 360 Versa-Cable-Versa | 1 |
| FXTT-VVC | Syrngy 360 Versa-Versa-Cable | 1 |
| FXTX-CCCC | Syrngy 360 Cable-Cable-Cable | 4 |
| FXTX-CCVR | Syrngy 360 Cable-Cable-Versa-Rebounder | 2 |
| FXTX-CCVV | Syrngy 360 Cable-Cable-Versa-Versa | 2 |
| FXTX-CVVR | Syrngy 360 Cable-Versa-Versa-Rebounder | 1 |
| FXTX-CVVX | Syrngy 360 Cable-Versa-Versa-Crossover | 1 |
| IFI CMDAP | IFI Cable Motion Dual Adjustable Pulley | 2 |
| MJACO | Multi-Jungle Adjustable Cross Over | 2 |
| MJAP | Multi-Jungle Adjustable Pulley | 1 |
| MJAP41 | Multi-Jungle Adjustable Pulley 4:1 | 2 |
| MJAXO | Multi-Jungle Adjustable Cross Over | 2 |
| OSDAP | Optima Series Dual Adjustable Pulley | 2 |
| SYN90-CC | Syrngy 90 Cable-Cable | 2 |
| SYN90-CV | Syrngy 90 Cable-Versa | 1 |
| SYN90-VC | Syrngy 90 Versa-Cable | 1 |
| HAMMER STRENGTH PRODUCTS | ||
| HDEDAP | Heavy Duty Elite Dual Adjustable Pulley | 2 |
| HDLCRCCDPR | Heavy Duty Elite Cable Right Cable Column Dual Pulley Row | 1 |
| HDLCRCCPD | Heavy Duty Elite Cable Right Cable Column Pull Down | 1 |
| HDLCRCCRW | Heavy Duty Elite Cable Right Cable Column Row | 1 |
| HDLCRDAP | Heavy Duty Elite Cable Right Dual Adjustable Pulley | 1 |
| HDLDAP | Heavy Duty Elite Dual Adjustable Pulley | 2 |
| CYBEX PRODUCTS | ||
| PP-ACO | Power Play Cross Over | 2 |
| PP-ACOFS | Power Play Adjustable Cross Over Free Standing | 2 |
| PP-AP | Power Play Adjustable Pulley | 1 |
| PP-AP41 | Power Play Adjustable Pulley 4:1 | 1 |
| PP-AXO | Power Play Adjustable Cross Over | 2 |
Customer Order Form
Click Link to open order form: Order Form
Label Installation Instructions
Please refer to the order form link above to replace any worn, damaged, or unreadable labels or instructional placards and to ensure that you are always using the latest version of labels and instructional placards.

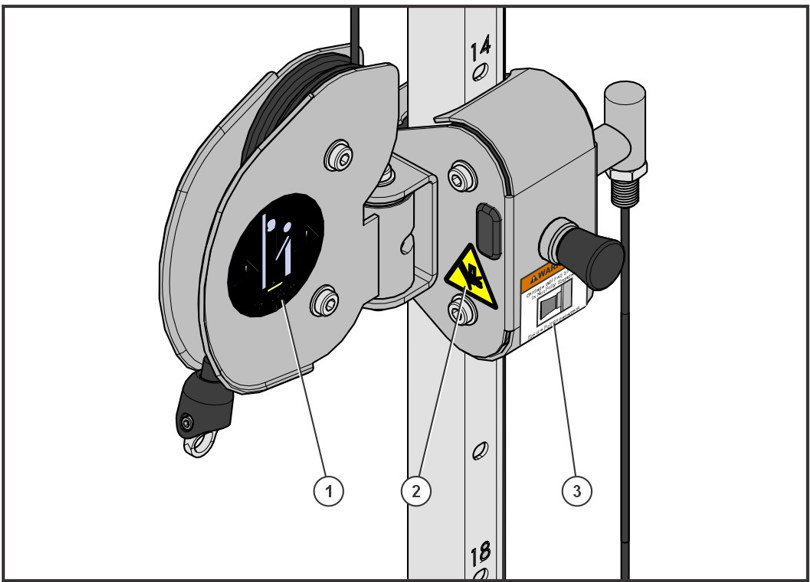

Adjustable Carriage Labels: Front Adjustable Carriage Labels: Rear
| Item | Description | Part Number | Qty. |
| 1 | Adjustable Carriage Warning | 1011299-0001 | 2 |
| 2 | Pinch Warning (pulley side only) | 8039501 | 1 |
| 3 | Pin Engagement Warning | 7821001 | 1 |
1. First use the clean cloth to clean areas where labels are needed. Quickly wipe down those areas with the alcohol pad while it's still wet. Apply rubbing alcohol with the clean cloth if residue persists.
| Item | Description | Qty. |
| 1 | Adjustable Carriage | 1 |
| 2 | Clean Cloth | 1 |

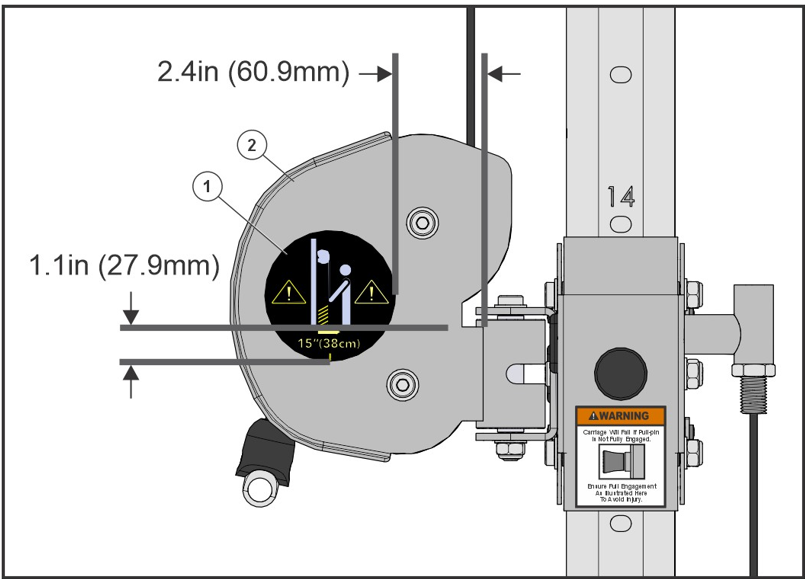

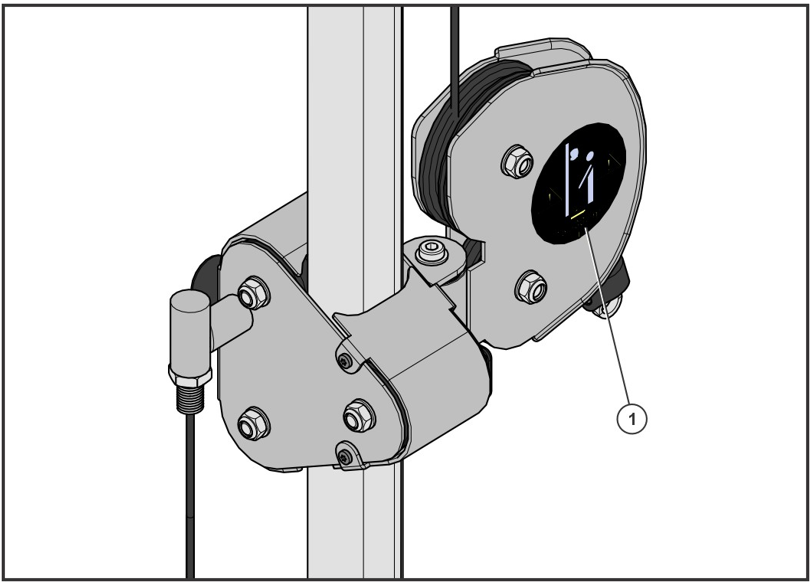

2. Remove protective backing from adjustable carriage warning label and carefully place onto each side of the swivel pulley weldment.
| Item | Description | Qty. |
| 1 | Adjustable Carriage Warning Label | 2 |
| 2 | Swivel Pulley Weldment | 1 |

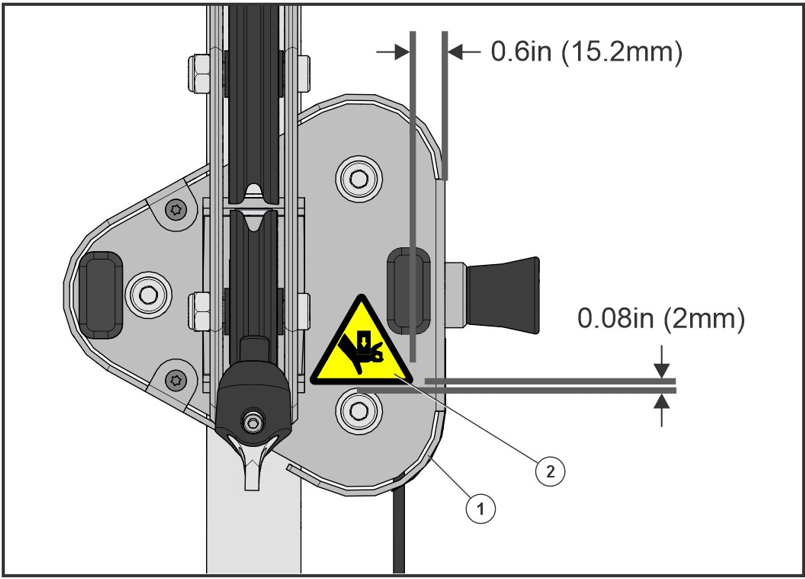

3. Clean area where label is needed. Remove protective backing from pinch hazard label and carefully place onto the inside of the carriage assembly.
| Item | Description | Qty. |
| 1 | Carriage Assembly | 1 |
| 2 | Pinch Hazard Label | 1 |
| Item | Description | Qty. |
| 1 | Carriage Assembly | 1 |
| 2 | Adj. Carriage Warning Label | 1 |
Check Adjustable Carriage Tension

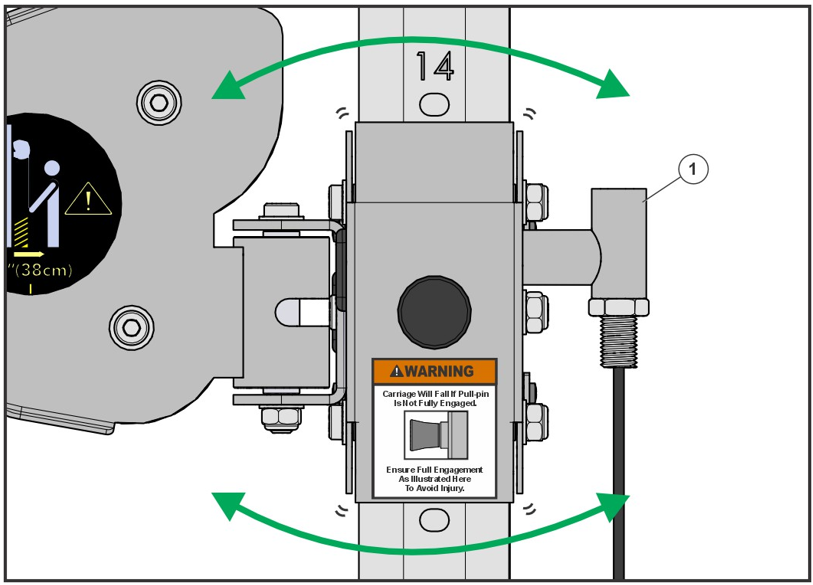

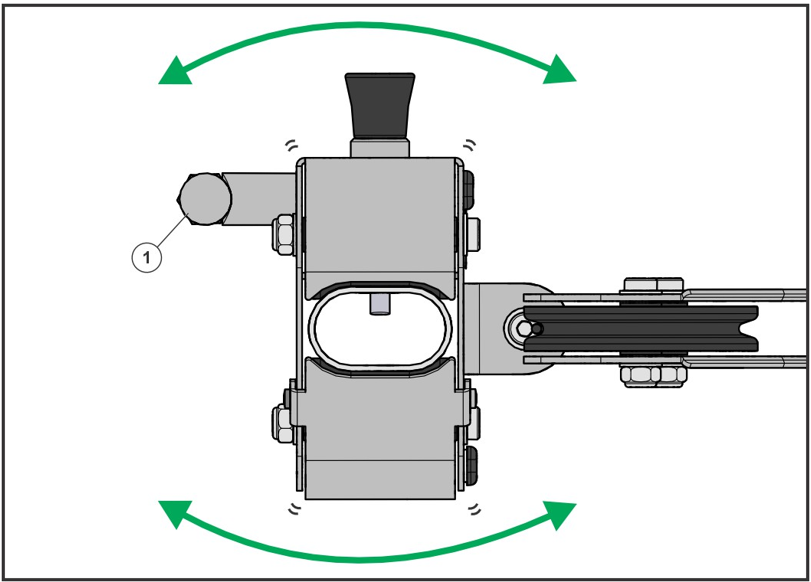

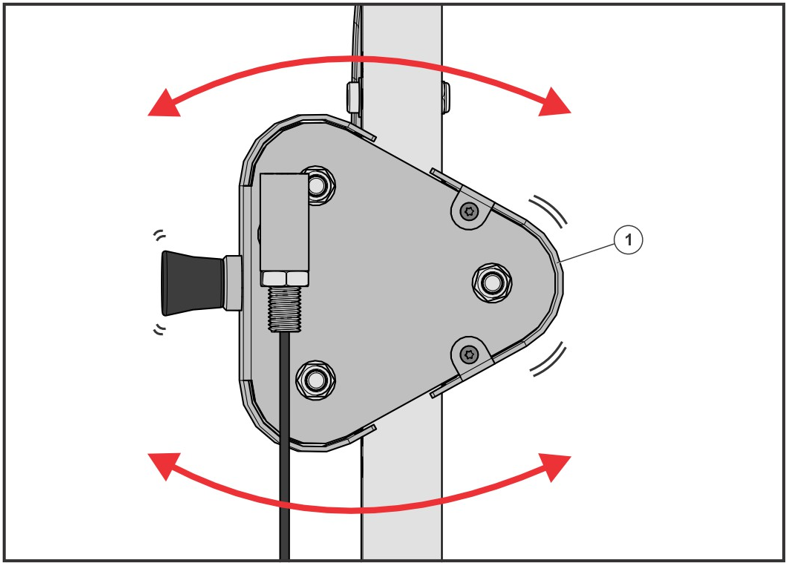

1. Minimal movement, not to exceed 3 degrees, is acceptable on the carriage's front and top planes. Check the angle with the smart phone angle indicator app and adjust carriage if over 3 degrees.
Front Plane Top Plane
| Item | Description | Qty. |
| 1 | Carriage Assembly | 1 |

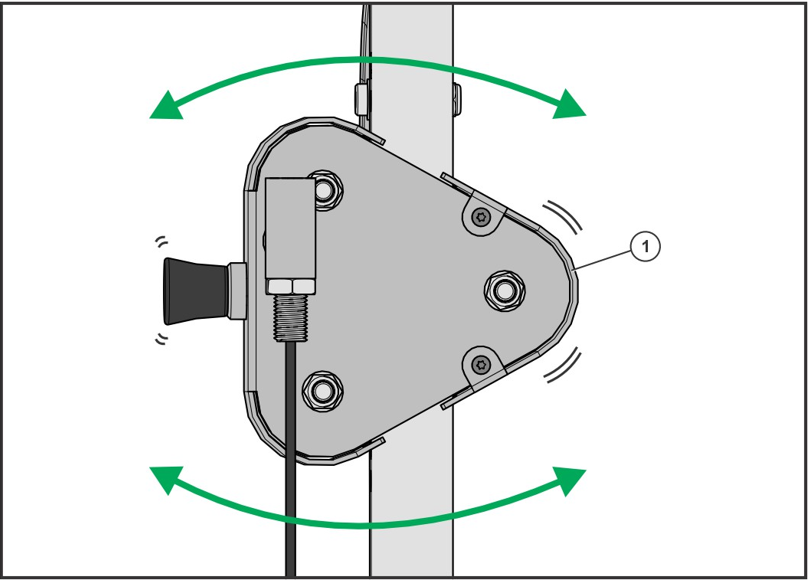

2. No movement is acceptable on the carriage's side plane. Adjust carriage if movement is detected.
Side Plane
| Item | Description | Qty. |
| 1 | Carriage Assembly |
1 |

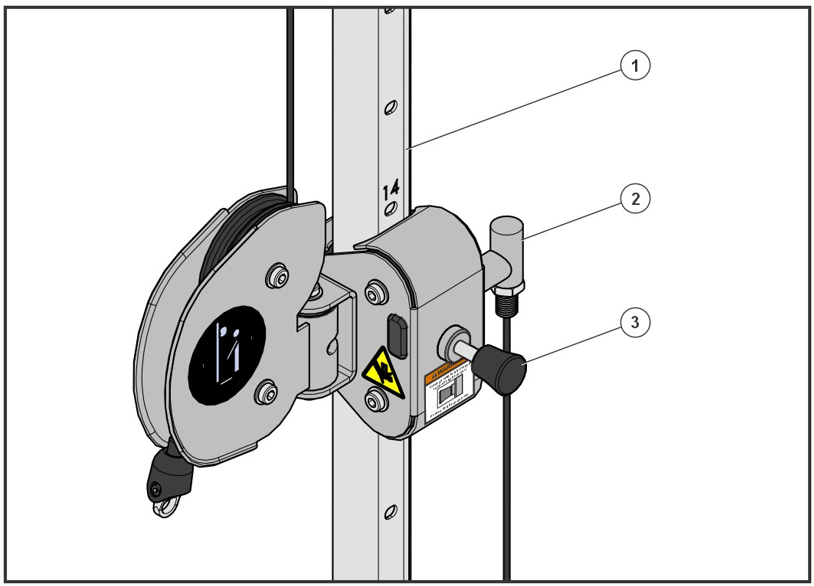

3. Pull knob to unpin the carriage from the column. The carriage assembly should be able to move freely under its own weight on the column without binding. If there are any points along the column that require assistance to move the carriage assembly downward (when unpinned), that indicates it is too tight and needs adjustment.
| Item | Description | Qty. |
| 1 | Column | 1 |
| 2 | Carriage Assembly | 1 |
| 3 | Knob | 1 |
Adjustable Carriage Adjustment Instructions

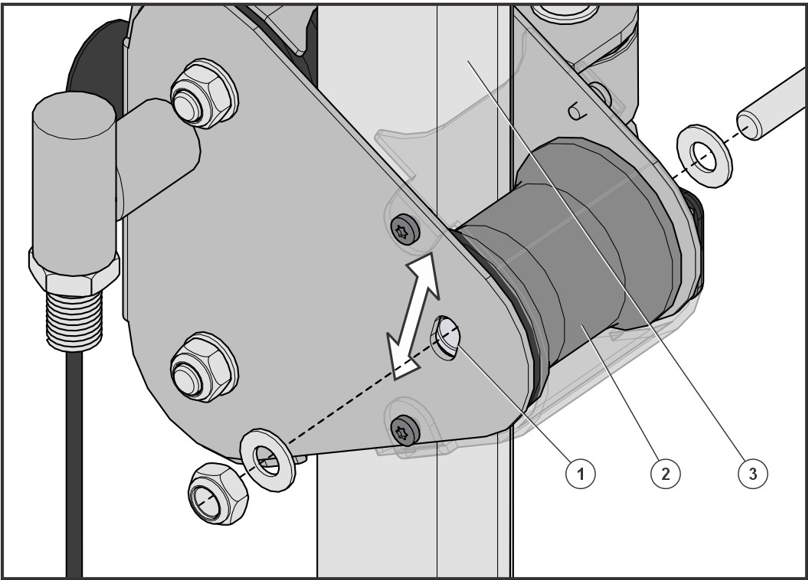

The position of the rear roller relative to the column regulates carriage tension. Adjust the rear roller during installation, or if the carriage becomes too tight or too loose, by utilizing the 15-degree slotted holes at the rear of the carriage.
| Item | Description | Qty. |
| 1 | Slotted Hole | 2 |
| 2 | Rear Roller | 1 |
| 3 | Column | 1 |

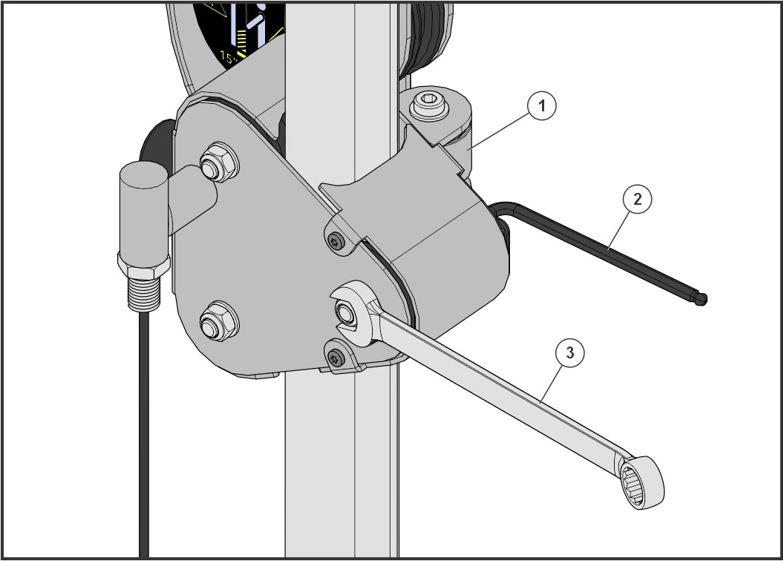

1. Carefully loosen the rear roller hardware, just before the nut and bolt stop turning in unison but are still unable to turn by hand.
| Item | Description | Qty. |
| 1 | Carriage Assembly | 1 |
| 2 | 7mm Allen Wrench | 1 |
| 3 | 17mm Wrench | 1 |

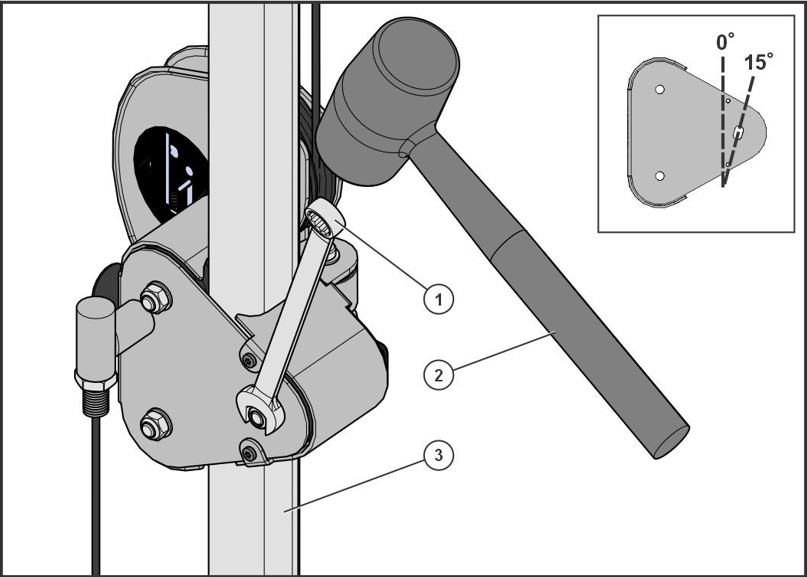

2. With the 17mm wrench inline with the 15-degree slot, carefully tap the top of the wrench to drive the roller towards the column.
| Item | Description | Qty. |
| 1 | 17mm Wrench | 1 |
| 2 | Rubber Mallet/Dead Blow Hammer | 1 |
| 3 | Column | 1 |

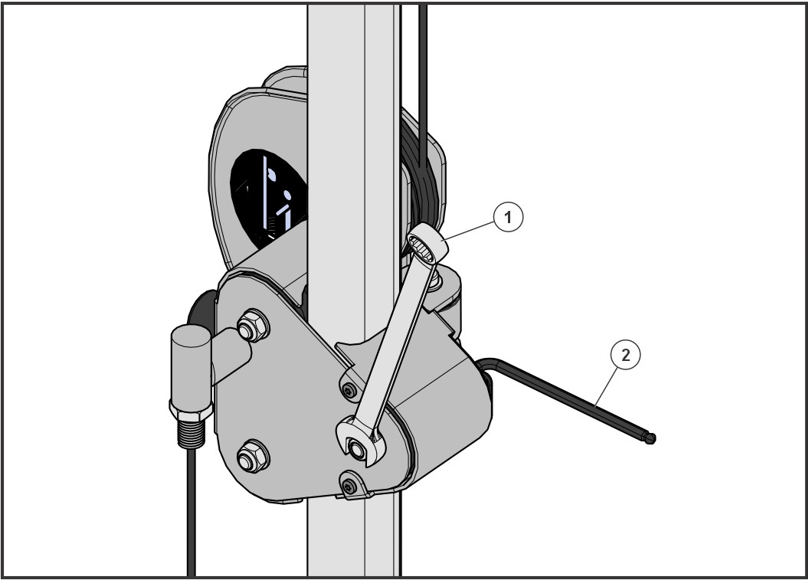

3. Keeping the 17mm wrench stationary, use only the 7mm Allen wrench to tighten the hardware to 20-25 ft-lbs (27-34 Nm).
| Item | Description | Qty. |
| 1 | 17mm Wrench | 1 |
| 2 | 7mm Allen Wrench | 1 |
4. Check carriage movement before use; repeat adjustment process if needed.
| Item | Description | Qty. |
| 1 | Carriage Assembly | 1 |
Columbia Center III - 9525 Bryn Mawr Ave., Rosemont, IL 60018, USA • https://support.lifefitness.com
© Copyright 2025 • Life Fitness, LLC. All Rights Reserved. Life Fitness, Hammer Strength, Cybex, ICG and SCIFIT are registered trademarks of Life
Fitness, LLC and its affiliated companies and subsidiaries. Disclaimer: Images and specifications are current as of the date of publication and are
subject to change.
www.lifefitness.com • 1027318-0001 • REV AC • 2025
