Field Request:
- Field techs requested adding rower footstrap “fixing screws” to the rower footrest holder spare parts (image below).
Reason:
- After replacing "only" the footrest holders, then attempting to refit the original footrest straps to the new footrest holders, the footstrap screws are sometimes no longer serviceable.
Solution:
- Footstrap fixing screws have now been added to the footrest holders, actioned via new spare parts numbers. This update is reflected in the SBOM spare parts, found on the Parts Store: Site: Home
- OLD part no's:
- 150-01-00141-01 (left)
- 150-01-00139-01(right)

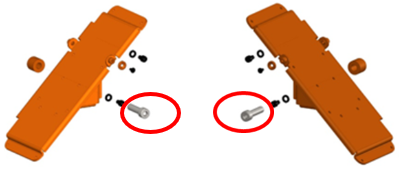

- NEW part no's (now with footstrap fixing screws - circled in RED):
- 190-01-00114-01 (left)
- 190-01-00113-01 (right)
END.
