Assembly instructions can be found here.

Life Fitness Symbio Series Google Casting Solution Kit Installation Instructions

Life Fitness Integrity+, Aspire Series Google Casting Solution Kit Installation Instructions

Life Fitness Google Casting Solution Configuration Setup Instructions

Google Cast Setup & User Flow

Disclaimer:​

The unit(s) used in these videos are pre-production models. The product, components, setup, procedures, and instructions may differ from the final product configuration. This video is intended for general reference only.​

Always refer to the official instructions and manuals for the correct procedures, tools required, and detailed guidance.

In this article:

Step 1 - Casting Setup Requirements

Step 2 - Setup

Step 3 - Installing Casting Device on Symbio Runner

Step 4 - Installing Casting Device on the floor solution

Step 5 - Installing Casting Device on SE4 Console

Step 6 - Setup Casting Device to WIFI

Casting Setup Requirements​

Hardware Requirements

• Wireless connection (Wired ethernet connection is not supported).

• Contact the facility manager to get the Wi-Fi network name and password.

• Casting Box + Mounting Bracket

• LG Setup Remote + IR Sensor

• PC

• USB Flash Drive

Software Requirements

• Console SW Requirements: v5.13.17 or later

• Minimum Casting Box SW Requirements:

• US Version: v03.55.70

• EU Version: v03.70.50

Note: LG-6500 to discontinued August 2026 and replaced by LG-7600

Setup

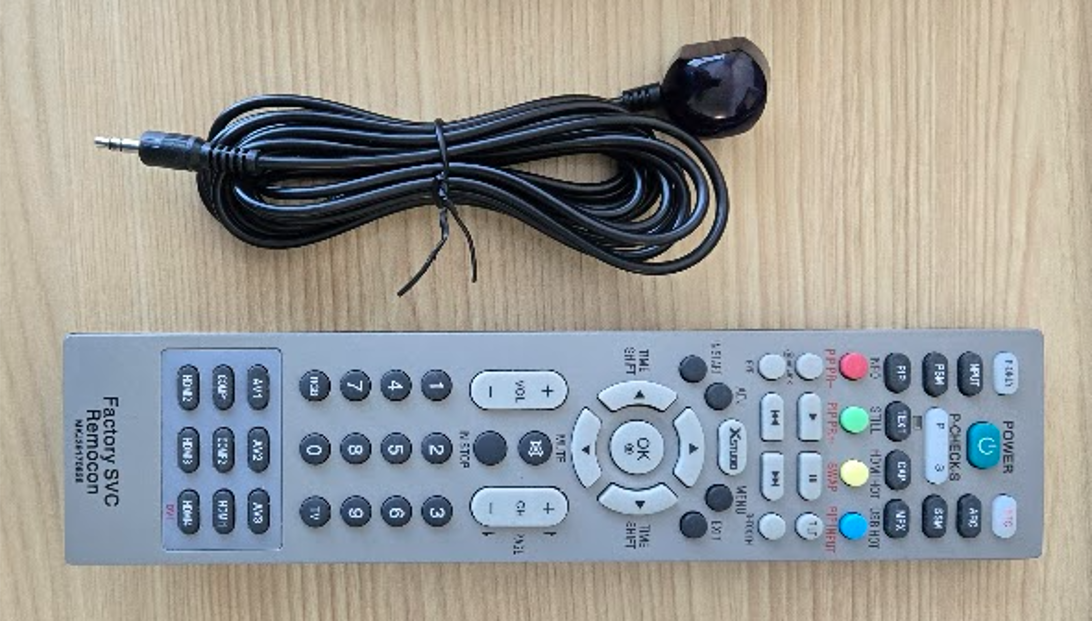

The initial setup requires a remote due to a video resolution screen needing an IR input to bypass. You will require the below SKU with a facility order. • •Orderable SKU: CASTING-IR-REMOTE

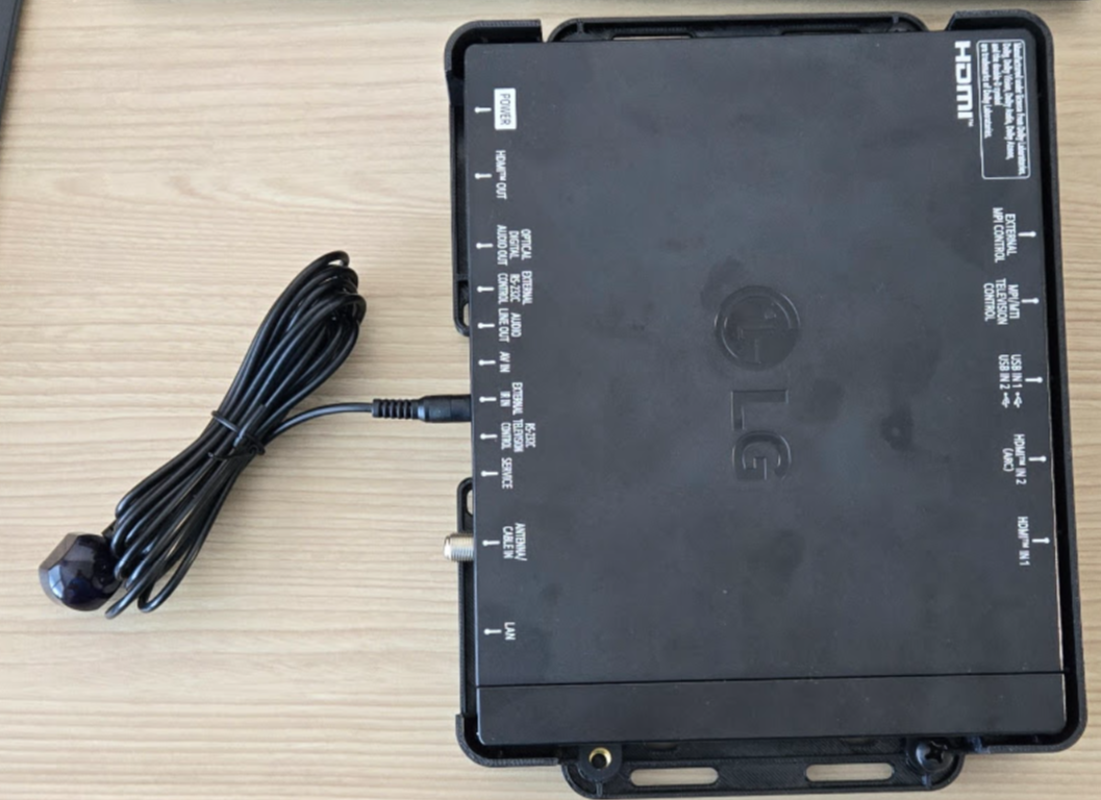

•IR sensor plugs into the External IR IN 3.5mm jack •You can connect the IR sensor when the Casting Box is full installed

---

Installing Casting Device on Symbio Runner

---

Installing Casting Device on the floor solution

---

Installing Casting Device on SE4 Console

---

Setup Casting Device to WIFI
