Tools Required:
• Phillips screwdriver
• Torque wrench
• Batteries, D cell, (2)
Time:
5 minutes
Remove Batteries

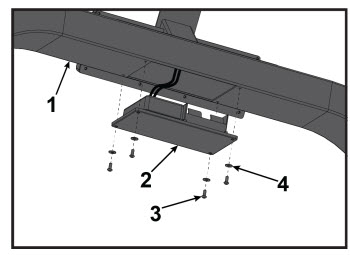

1. Remove four screws and four washers securing battery cover to console crossbar using a Phillips screwdriver.

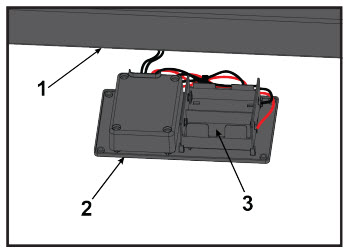

2. Remove batteries from battery holder.
Install Batteries

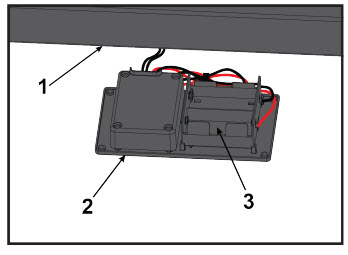

1. Install two D cell batteries into battery holder.
NOTE: Make sure batteries are installed in the correct direction.

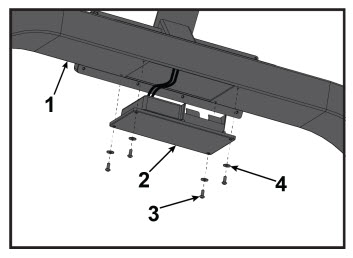

2. Install four screws and four washers securing battery cover to console crossbar using a Phillips screwdriver. Torque to 5 in-lbs.
See the following Hammer Strength HD Tread Service Manual for more details
