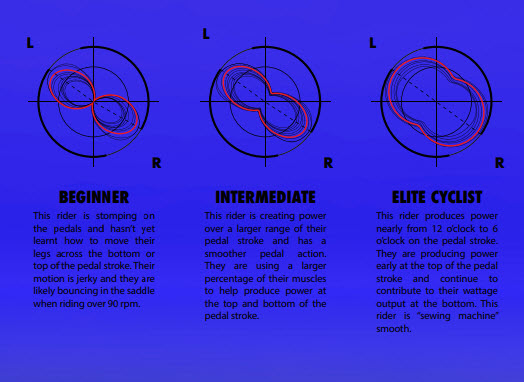

August 30, 2023: The Life Fitness IC7 with Sprint Pro Handlebar finished good SKU IC-LFICGIC7-01 is compatible with the Pedal Efficiency Graph for left / right leg independent power measurement.
Prior Life Fitness IC7 finished good SKUs (Ex. IC-LFIC7B2-02, IC-LFIC7B2-02-LE) will not work with the Pedal Efficiency Graph since IC-LFICGIC7-01 is equipped with a different magnet and position on the drive pulley which activates the reed switch, that in turn signals the position of the cranks for the right left pedal efficiency graph.

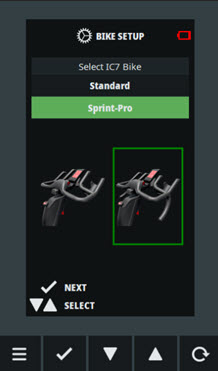

Note: The Pedal Efficiency graph is enabled when selecting the Sprint-Pro model during product Bike setup for finished good SKU IC-LFICGIC7-01. See the following if the Life Fitness IC7 Bike has an incorrectly displayed Pedal Efficiency Graph orientation
