February 7, 2022: Each Insignia strength product needs to be configured with certain customization options during the sales process:

• Trim Options
• Weight Stack Options
• Shroud Options
• Color & Style Options
• Serial Number Model Number Detail

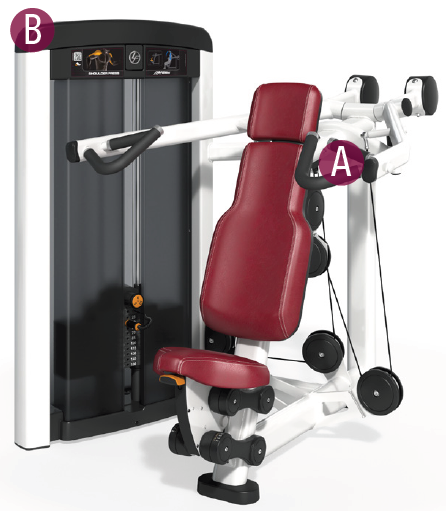

Trim Options

L Trim

A: Ergonomic grips

B: Aluminum painted tower cap

C: Integrated rep counter/timer

S Trim

A: Standard grips

B: Charcoal gray plastic tower cap

(no rep counter/timer)

Note:  Life Fitness does not offer trim packages as an orderable item since the trim is an option under the model. If a different trim is needed after an order has placed, the related parts manuals can be reviewed to order specific trim parts by model through Service.

Weight Stack Options

X Weight Stack

Heavy weight stack (15% more than standard) with two, 5-lb (2.5 kg) dial weight increments

C Weight Stack

Standard weight stack with two 5 lb (2.5 kg) dial weight increments

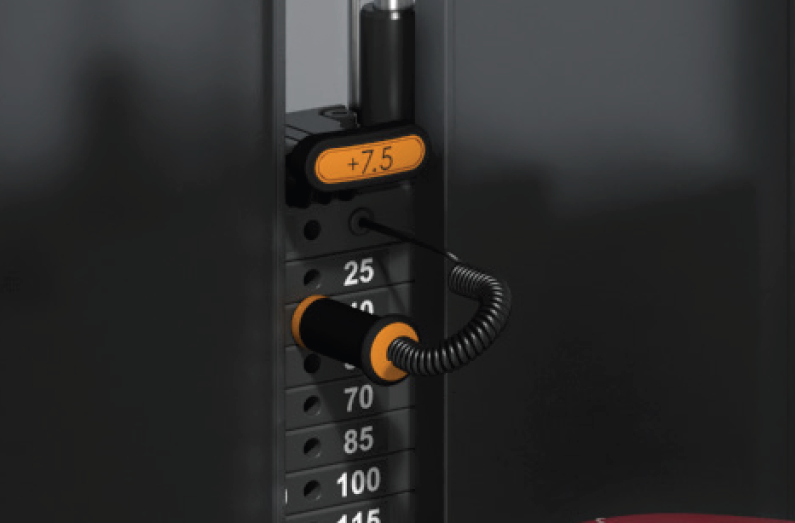

P Weight Stack

Standard weight stack with one 7.5 lb (3.75 kg) push/pull weight increment

T Weight Stack (Discontinued)

Standard stack with two 5 lb (2.5 kg) drop down incremental weight

Shroud Options

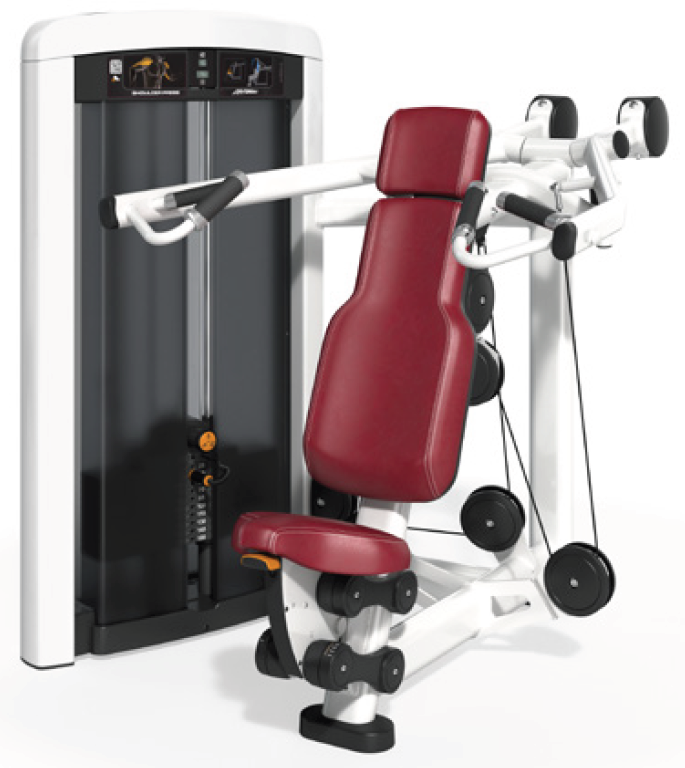

Rear Shroud

Rear Shroud only, No Front Shroud.

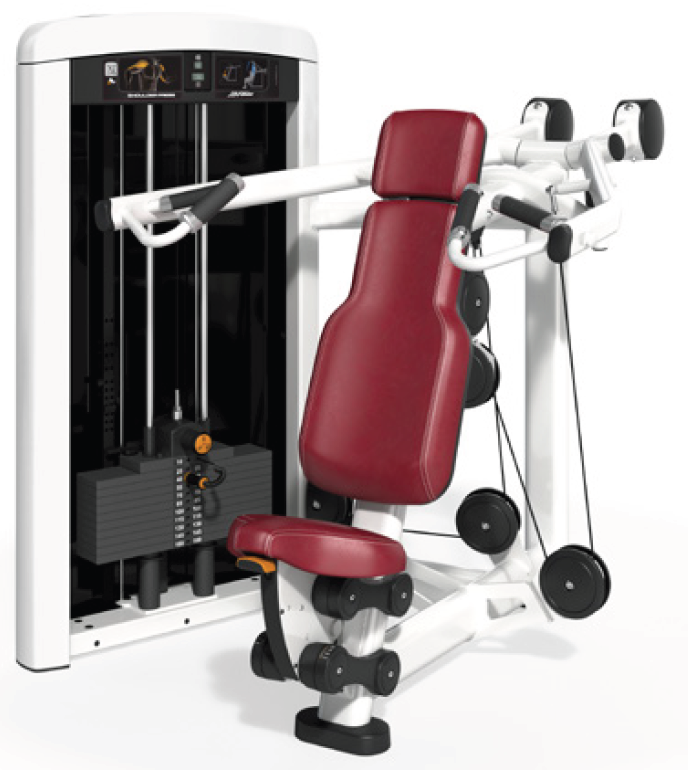

Full Shroud

Front and Rear Shroud

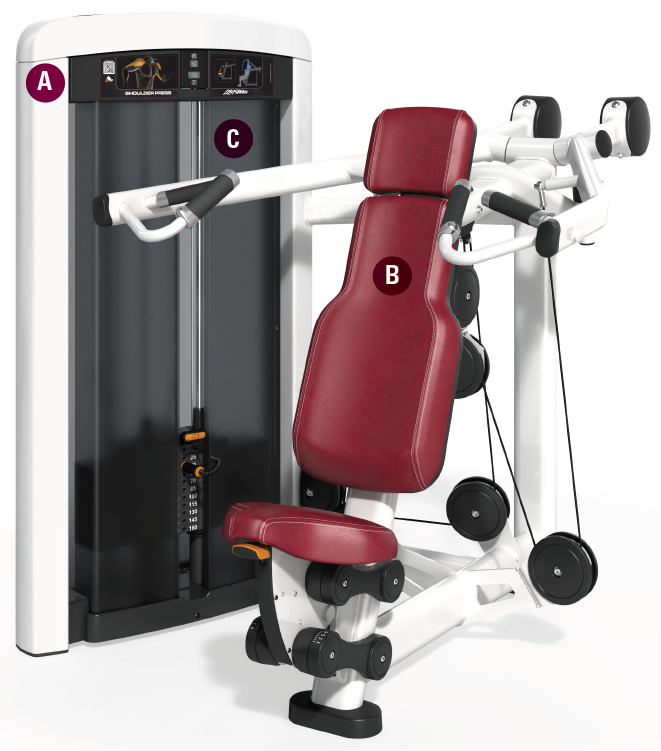

Color & Style Options

A: Frame color

multiple colors available - current available colors could vary

(picture for illustration purposes only)

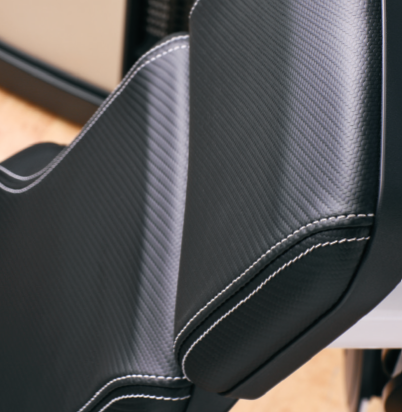

B: Upholstery color & Stitching

- Upholstery color: multiple colors available

- Upholstery Stitching: Single or Double Stitching

C: Shroud Print Inlays

multiple designs available - current available designs could differ

(picture for illustration purposes only)

Serial Number Model Number Detail Example
