Hammer Strength HS-HG Device Holder Assembly

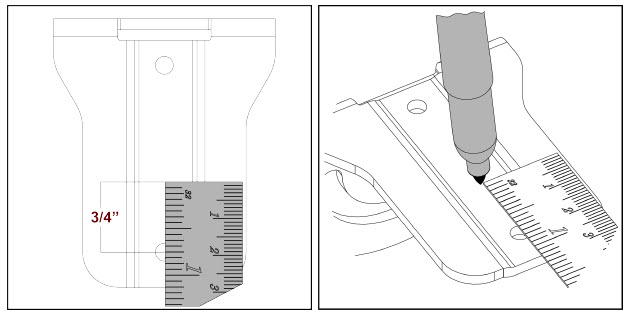

1. With the bent part of the phone bracket facing down, measure ¾" from the bottom hole center of the bracket and mark with a black marker as shown.

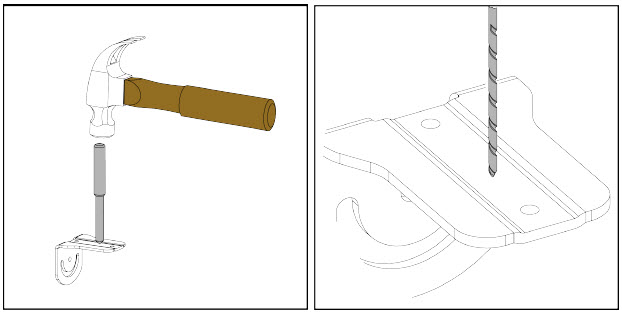

2. Use a center punch and hammer to make a small dent on the marked area, then use a 1/8" drill bit and drill a hole thru the bracket. Place the bracket to the side once this is done.
Hammer Strength HS-HG Device Holder Installation

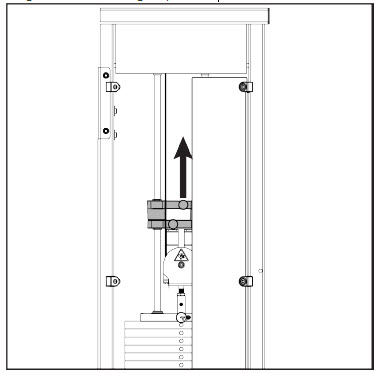

1. If the increment weights are in the lowered position, move them back up to their original positions by pulling outward on the release knobs.

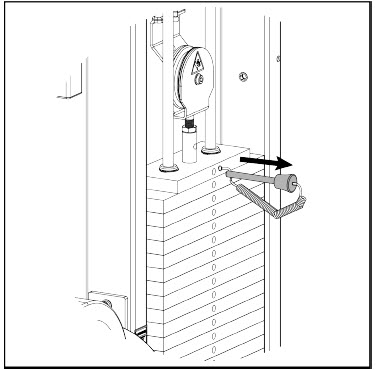

2. Remove the selector pin from the weight stack.

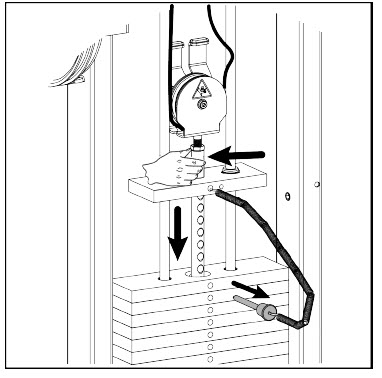

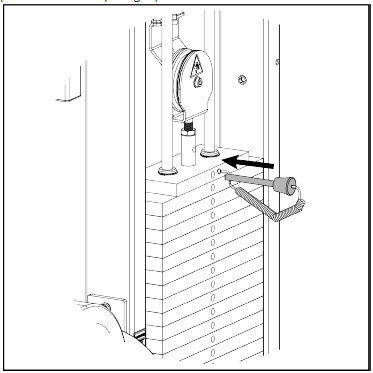

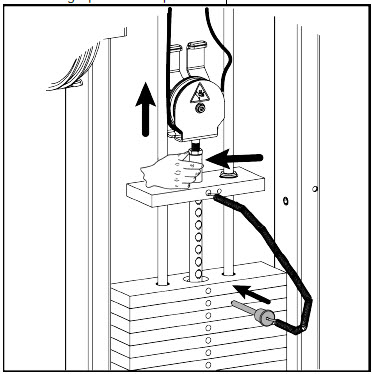

3. Carefully grab the selector rod under the pulley and lift upward to create slack in the cable and re-insert the selector pin back into the weight stack as shown.

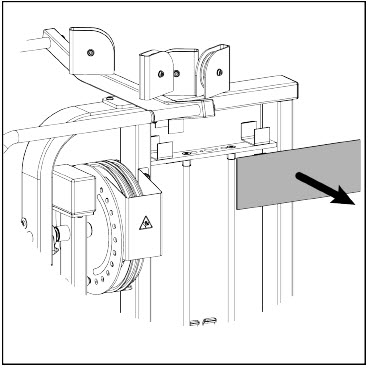

4. Remove the right side placard (Placard facing pin selector side)

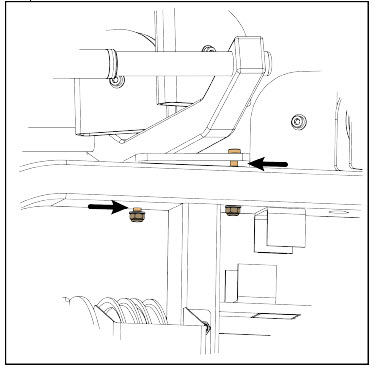

5. Use a 17mm wrench and 7mm hex bit to loosen, but do not remove the front and rear bolts securing the handlebar weldment plate.

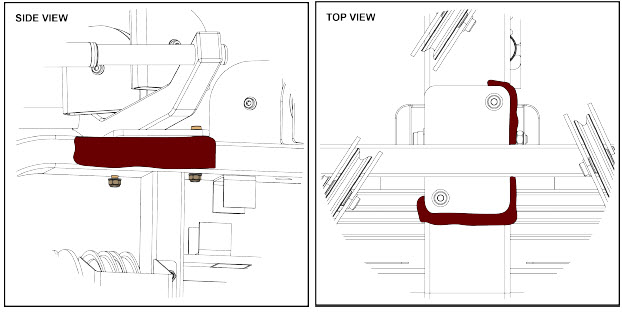

6. Slide a shop rag between the handlebar weldment plate and frame to protect the powder coat as shown.

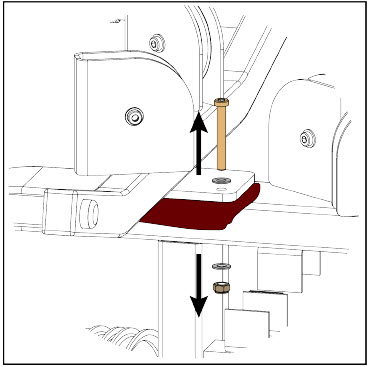

7. Remove the rear bolt (Bolt between the four pulleys).

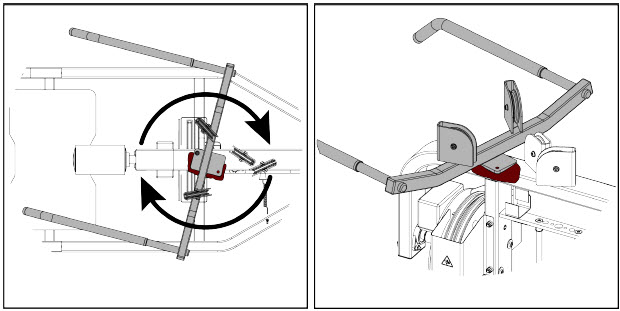

8. Carefully rotate the the handlebar weldment to the right as shown.

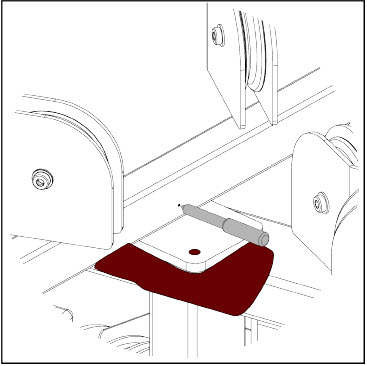

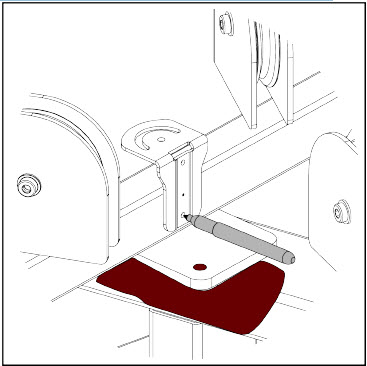

9. Take the device holder from the Device Holder Assembly and with the bent end facing away, center it on the handlebar mounting plate and just above the weld, then mark the bottom hole on the crossbar.
10. Use a center punch and hammer to make a indentation on the handlebar crossbar on the marked area.
11. Warning: Use a power drill, not a impact driver.

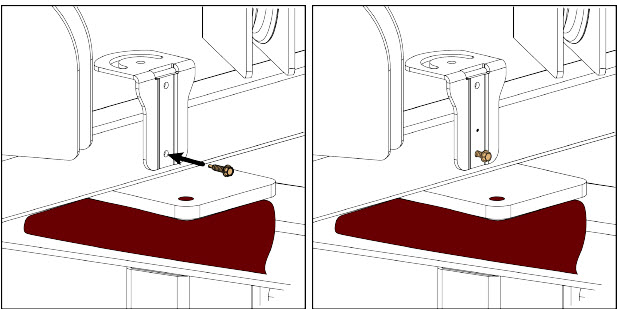

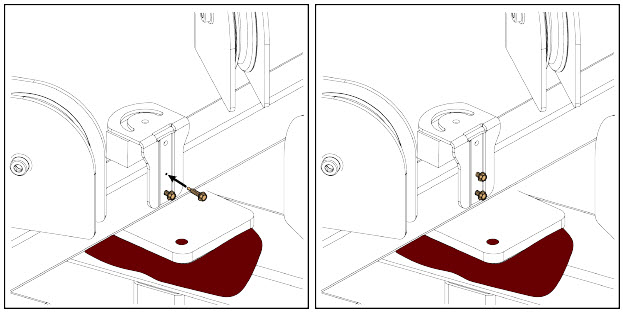

Place the phone bracket back into place, then use a ¼" socket to loosely insert the first #8-18 x3/4" self-tapping screw into the bottom hole.

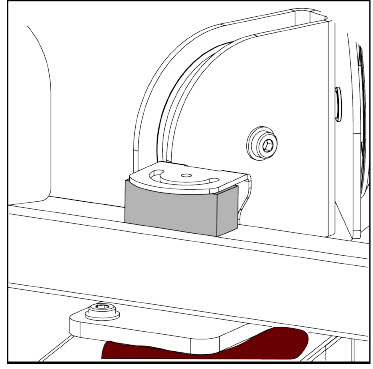

12. Place a spacer (ex. block of wood) approximately 2.5" x 1" under the phone bracket bent end as shown to keep the bracket straight.
13. Warning: Use a power drill, not a impact driver.
Use a ¼" socket to loosely insert the second #8-18 x3/4" self-tapping screw into the second hole.

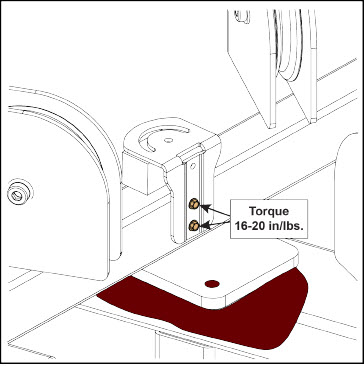

14. Attention: Torque the screws to 16-20 in/lbs.
Tighten both screws and torque to 16-20 in/lbs.
Note: Use a hand held vacuum to clean and remove any metal debris

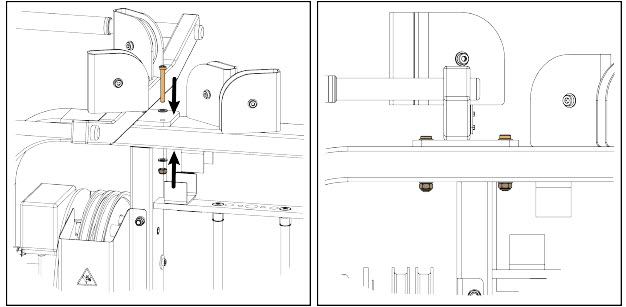

15. Carefully rotate back the handlebar weldment, remove the shop rags and insert the bolt with nut removed in step 8, then use a 7mm hex bit and 17mm wrench to tighten both the front and back bolts.
16. Grab the selector rod and remove the selector pin from the weight stack, then slowly lower the top plate onto the stack and re-insert the selector pin.
17. Device Holder Installation Complete
See the following article Life Fitness Connect System Kit Hammer Strength Device Holder, Main Unit, Reflective Card, and Puck Installation Instructions to install the remaining Main unit, Reflective Card, and Puck
