See the following instructions on how to install the Life Fitness Connect System Kit on Insignia, Axiom, and Hammer Strength Selectorized Strength Products
CK-PRODUCT-01 Product Kit Installations Instructions
| Step | Description |
| 1 | Install Observer |
| 2 | Install device holder, main unit and reflective card, puck |
| 3 | Install beacon |
Prerequisite: Ensure facility meets the Life Fitness Connect System Requirements
Step 1: Install the Observer

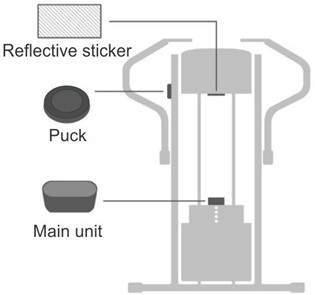

Step 2: Install Device Holder, Main Unit, Reflective Card, and Puck
- Insignia installation instructions
- Axiom installation instructions
- Hammer Strength installation instructions
Step 3: Install the Beacon
CK-FACILITY-01 Facility Kit or CK-PUCK-01 Free Zone Kit Installations Instructions
| Step | Description |
| 1 | Install Observer |
| 2 | install free zone puck |
| 3 | install beacon |
Prerequisite: Ensure facility meets the Life Fitness Connect System Requirements
Step 1: Install the Observer
Step 2: Install Free Zone Puck
Step 3: Install Beacon
Note: See the following article for pre-configured Insignia Life Fitness Connect System Insignia T Trim Installation Instructions
