10/19/2021: In the event that that an optional power supply is needed for a self powered R Series Arc trainer, have customer check the port under the front of the machine to see if there is a power supply plug in port connection in place.

If there is no power supply connection in place or port is damaged in any way need to order the replacement jumper from the board to the port and then the optional power supply.

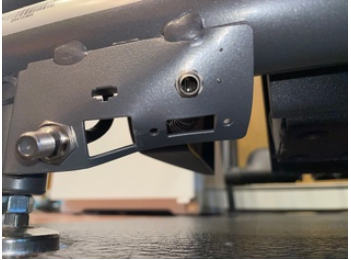

RCB to Optional Power Plug In Port (Pictured Above) 1003521-0004
24v Power Supply for Discover, and 70T consoles 1004808-0001
12v 5a Optional Power Supply for C, X, and 50L consoles 1001517-0002
Line Cord NOT included with power supplies 0017-00003-1082 (DOM)
Note: For a International line cord based on your region, please check the part manual for your machine.
