For customers who have existing Life Fitness Multi Jungle (MJ) and Cybex PWR Play (PP) products, there is a possibility to upgrade or expand those MJ's and PP's with PWR Play (LPP) products. The below will give an outline what is possible and not.
Core and Station compatibility
Replace MJ/PP Station with LPP Station
PWR Play Incremental Weight System removal on MJ/PP Core
PWR Play Add-Ons on MJ/PP Core
PWR Play Front Shrouds on MJ Core
Connect MJ/PP Core with LPP Core

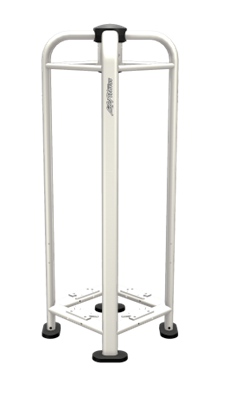

Core and Station compatibility
Core |
|
Station |
|
Core + Station |
|
|
+ |
|
= |
|
LPP Core |
+ |
LPP Station |
= |
Possible
|
MJ/PP Core |
+ |
LPP Station* |
= |
Possible
|
LPP Core |
+ |
MJ/PP Station |
= |
NOT
Possible
|
*The Life Fitness PWR Play incremental weight system needs to be removed in this setup. More information

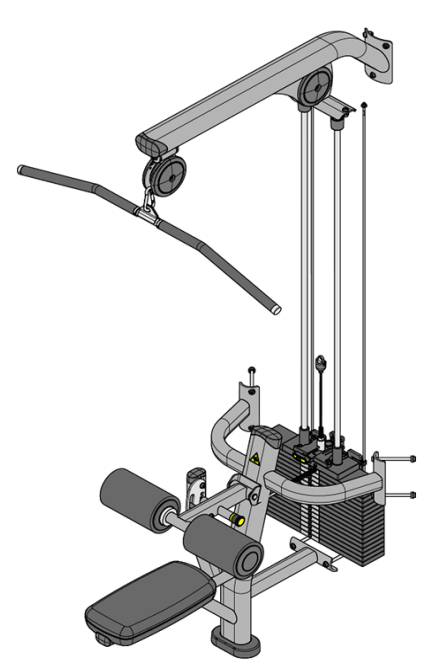

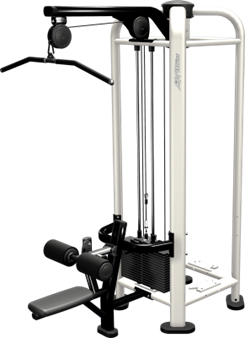

Replace MJ/PP Station with LPP Station
In cases where the MJ/PP Core already has an MJ/PP Station installed, which now needs to be replaced by an LPP Station, ALL of the parts and hardware of the MJ/PP Station have to be removed and need to be replaced by the LPP parts and hardware coming with the LPP Station.
None of the MJ/PP Station parts and hardware maybe re-used to setup the LPP Station within the MJ/PP Core, except when the optional LPP Front Shrouds need to be installed on this LPP Station within the MJ/PP Core. In that case the MJ/PP Front Shroud Support Brackets need to be used. More information.
Note: As already indicated here, an MJ/PP Station can't be added to an LPP Core under any circumstances.
PWR Play Incremental Weight System removal on MJ/PP Core
When adding an LPP Station, which includes a weight stack, to an MJ/PP Core, then the LPP Incremental Weight System needs to be removed from the weight stack.
This is due to the fact that the MJ/PP Core does not have the structure to support the LPP Incremental Weight System.

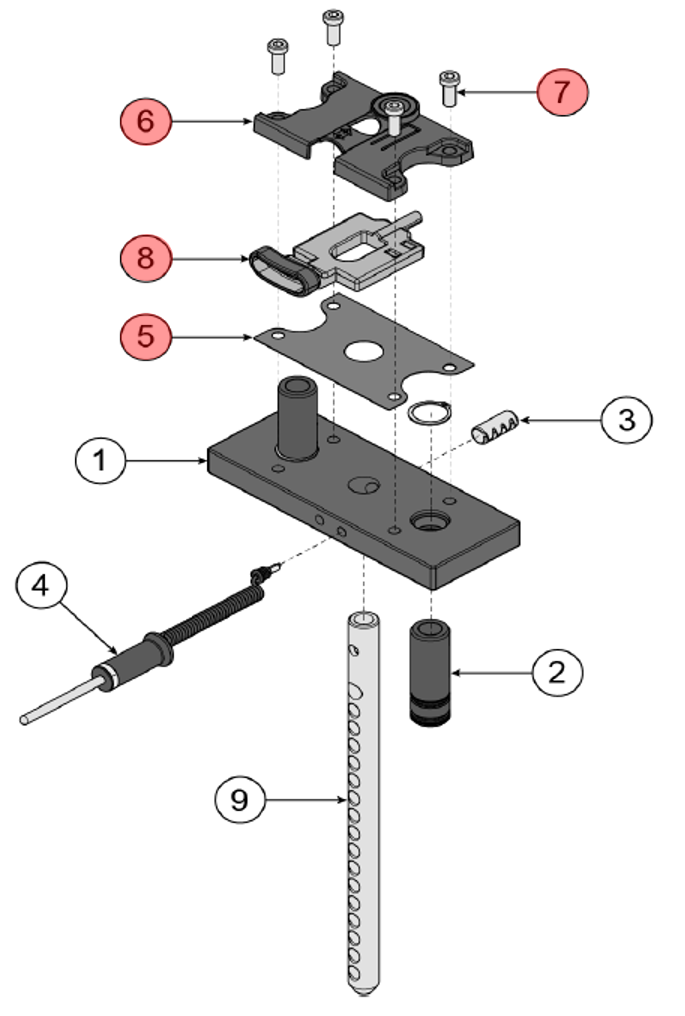

Items 5, 6, 7 and 8 in red color have to then be removed from the Headplate (Item 1) at installation.
PWR Play Add-Ons on MJ/PP Core
Adjustable Cable Handle Rack Storage (LPP-HR)

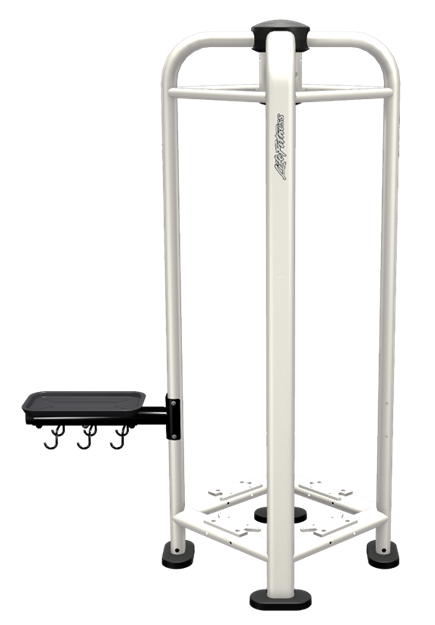

The PWR Play Handle Rack Storage (LPP-HR), shown on the right, does connect to the MJ/PP Cores in the same way as the previous version (MJ-HAR). It can be attached directly onto the MJ/PP Core.
Step (LPP-ST) & Dip (LPP-DI)

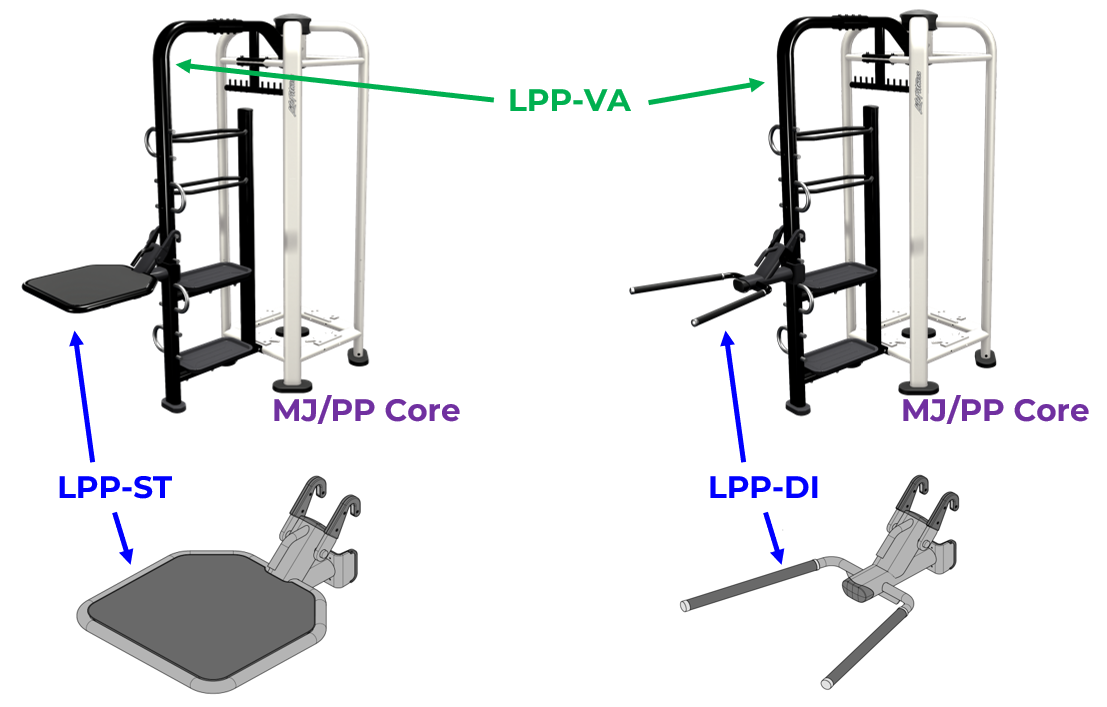

Both the PWR Play Step (LPP-ST) and PWR Play Dip (LPP-DI) add-ons can work with the MJ/PP Stations, but only through the Versa Station (LPP-VA). As indicated in the below picture, both only can attach to the Versa station (LPP-VA), which in turn then attaches to the MJ/PP Core.
PWR Play Front Shrouds on MJ Core

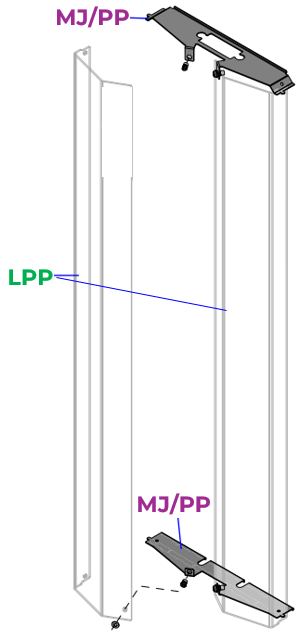

LPP Front Shrouds do fit on the MJ/PP Cores. However, the LPP Shroud Support Brackets are NOT compatible with MJ/PP. Therefore, to attach LPP Front Shrouds to MJ/PP Cores, the MJ/PP Shroud Support Brackets need to be used.
Connect MJ/PP Core with LPP Core

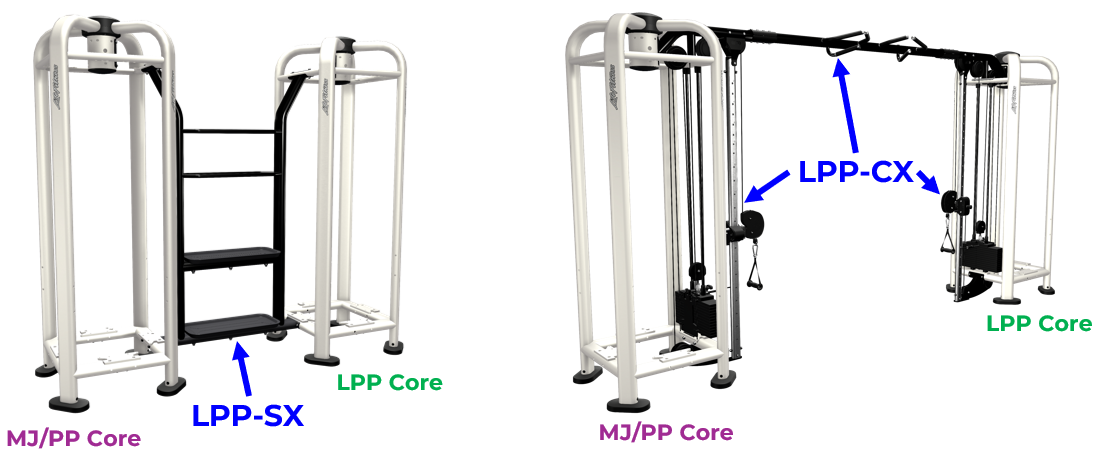

To connect an existing MJ/PP Core with an LPP Core, this only can be established with the LPP Core Connectors, either the Accessory Storage (LPP-SX) or Adjustable Cable Crossover (LPP-CX). This can't be done with any of the MJ/PP Core Connectors.
Note: Make sure to remove the LPP Incremental Weight System in the MJ/PP Core, as indicated here.
