Q: An original S180 system is bolt-to-floor. Can it be relocated and configured with the new SYNRGY free stand system?

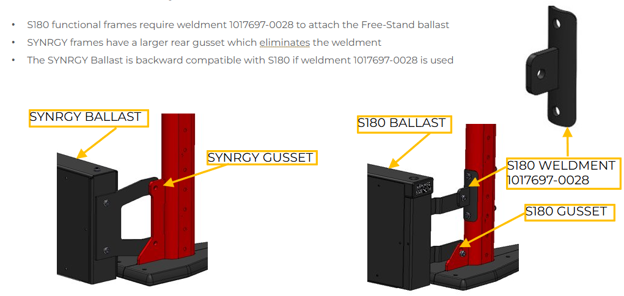

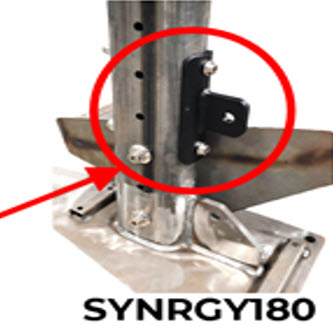

A: Yes the new free stand system is backward compatible with the original frames. However the original frames lack an upper mounting point for the ballast box, so an adapter bracket (1017697-0028 plus hardware) will be required for each frame.

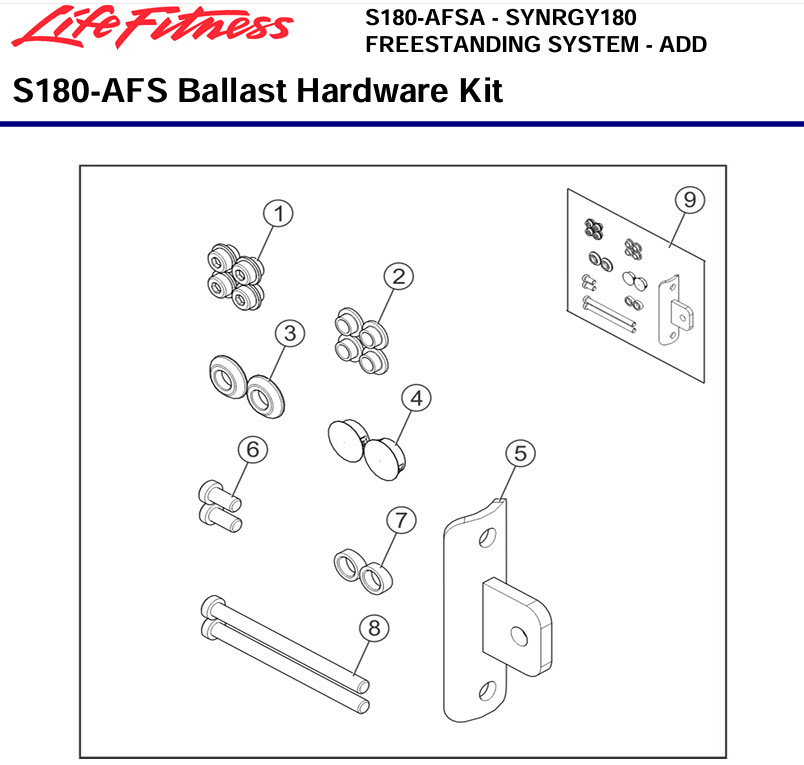

| Ref | Part Number | Qty | Description |
| 1 | 7335401 | 4 | NUT, M10 X 1.5 SOCKET HEAD |
| 2 | 7630101 | 4 | RETAINER, CM/MJ, PULLEY |
| 3 | 1012186-0001 | 2 | SPACER: 1-1/4 OD X 1/4 |
| 4 | 3237403 | 2 | PLUG, 1 IN HOLE |
| 5 | 1017697-0028 | 1 | WLDMT: BRACKET, LG FLOV - CHR |
| 6 | 3236202 | 2 | M10 X 1.5 X 25 SHCS, LOW HEAD |
| 7 | 1017698-0001 | 2 | SPACER: LG FLOV CONCAVE |
| 8 | 3236220 | 2 | M10 X 1.5 X 130 SHCS, LOW HEAD |
| 9 | 1018173-0001 | 1 | KIT: BALLAST HARDWARE KIT, AFS |
