Q: Can SYNRGY accessory storage frames (SYN-A) be used with SYNRGY functional/cable cores?
A: Yes, it is possible to use accessories storage frames with functional frames, however LF doesn’t currently promote this, and the configurator doesn’t support it. If such a configuration is desired, the ordering process will be manual.
There are several things to be aware of when considering this option:
- The mounting hole patterns in both frame types align with each other with the exception that accessories frame is shifted up by one position. This means the top-most hole in the accessories frame and bottom-most hole in the functional frame cannot be used. In most cases this isn’t much of an issue since the top and bottom-most holes aren’t generally used.
- The functional core must adhere to SYNRGY stability requirements (if not bolted down, must have proper ballast, or be a configuration that doesn’t require anchoring)
- The accessories frame has a deeper footprint, and so may prevent the entire unit from closer to the wall. If the unit requires ballast(s) the deeper accessories frame footprint will not affect positioning.

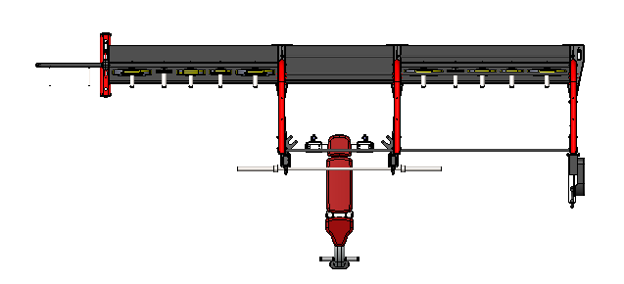

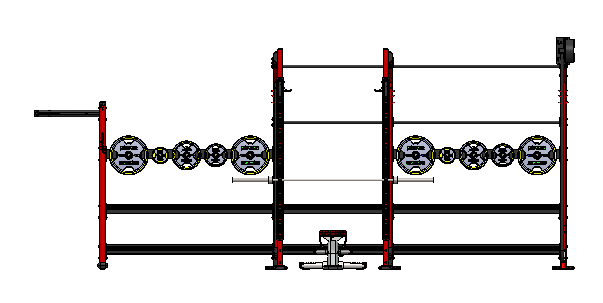

Below is an example wall unit with SYN-A on the left side.
