Zone Puck - Installation
Make sure battery is installed and puck is turned on.
Battery CR2450 is pre-installed. To activate battery remove insulating pull tab, highlighted here in yellow. The light of the puck should now turn on in a blue color before shutting down. There are times when the pull tab dislodges the battery. This is way you check for the blue light. If you need to open the puck follow the directions directly below.
Note: To access the the battery (CR2450) in the event it needs replacement, remove the old battery.
To install the new battery, slide the battery into the slot with the positive side facing up.
To close the puck, locate the arrow on the back piece. The arrow should be pointing to the locking tab. Twist the back piece to the right until you hear a click.
The puck can be installed on a wall or other piece of equipment called zones. It is ideal to walk around the facility with the operator or manager to place the pucks. Discuss with the facility manager about naming them. They might be able to provide you a list in the support app if not ask them what to name them and the facility manager will use Trainer Connect to configure them in the future.
Mount the back cover of the puck on a flat visible surface using the double-sided tape on the
back of the puck in the zone puck area/equipment. Attention! Make sure that the surface is clean and dry by wiping it with Isopropyl alcohol (also called isopropyl, isopropanol, or 2-propanol) with more than 95% concentration and a soft cloth. Make sure to wait a few minutes for the Isopropyl alcohol to fully dry.
Install a “Exercise zone”: Scan & find puck
The Life Fitness planner should have given you access to the facility in which you are installing. If you don't see the facility, contact the planner. They can add your account in almost realtime. If you need to refresh the list after changes are made. Click on the 3 dots in the top right cover and click reload gyms

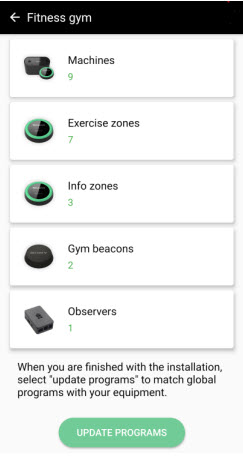

Press the zone tab in the site overview.

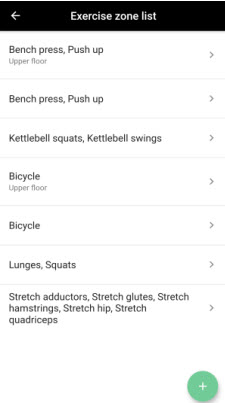

2. Press the “+”-button in the exercise zone overview.

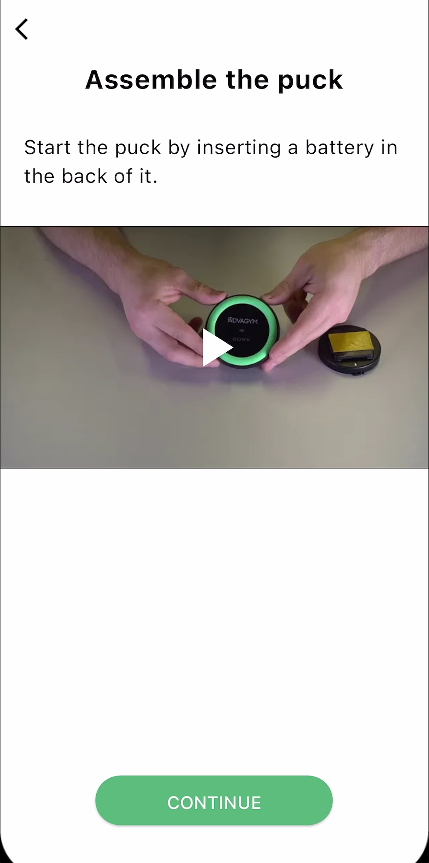

Confirm battery is active

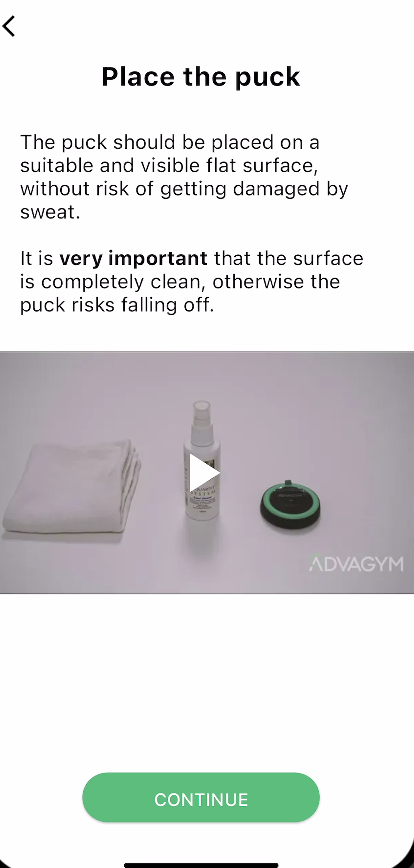

Confirm placement of puck

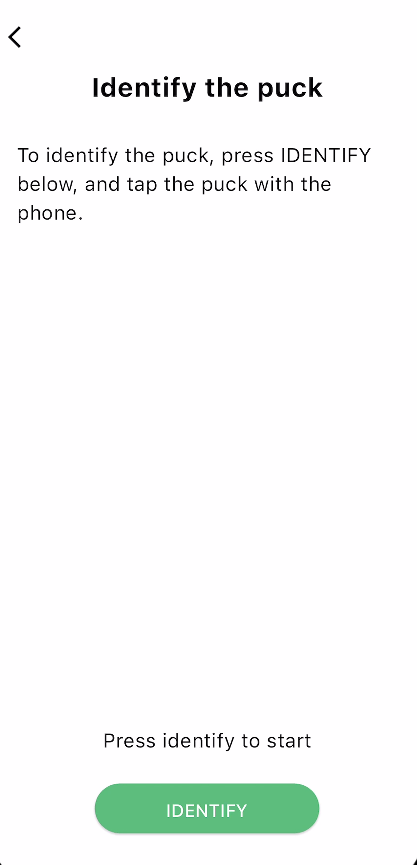

Identify the Puck
Puck Available, puck installed

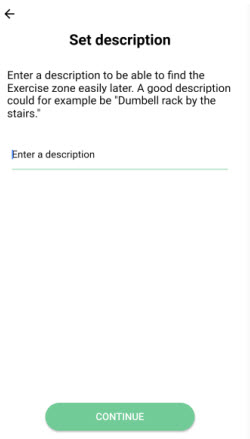

Set a description. This is where the operator or manager should help you name the zone so they can go into Trainer Connect and configure the zone.

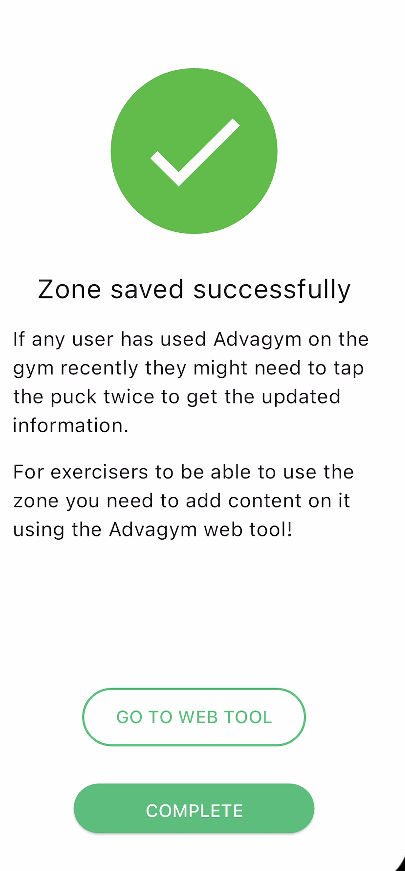

Install complete
See the following article Life Fitness Connect System How to Delete, Edit, Replace A Machine on how to Delete, Edit, or Replace a Puck
See the following article for additional Life Fitness Connect System Kit Strength Installation Instructions
